[SAP CPI] – INTEGRATED WITH SOCIAL COMMUNICATION

Hi guys, today I would like to share one guideline about Integrated with social communication like SLACK, OUTLOOK 365, MS Team

In integration suite, we have adapters like Mail receiver adapter, Slack Receiver Adapter, Http Receiver adapter.

In Integration Suite we also have Open Connectors.

By using adapter above, we can send message to social like SLACK, OUTLOOK, MS Team

PREREQUISITES

Role access to Open Connectors of Integration Suite

Account office 365 with Role admin

Slack

Outlook Email

MS Team

CONFIGURATIONS

Working with Slack in Open Connector

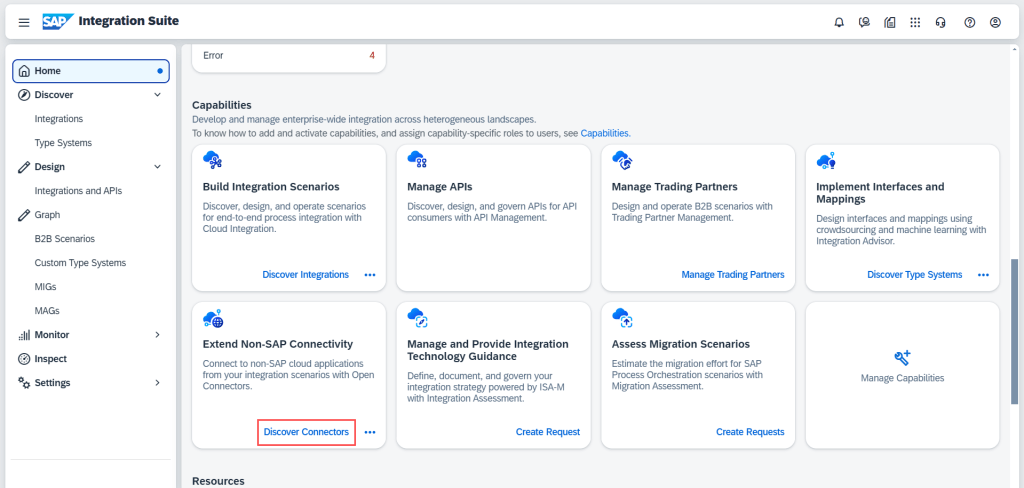

Access to Open Connector

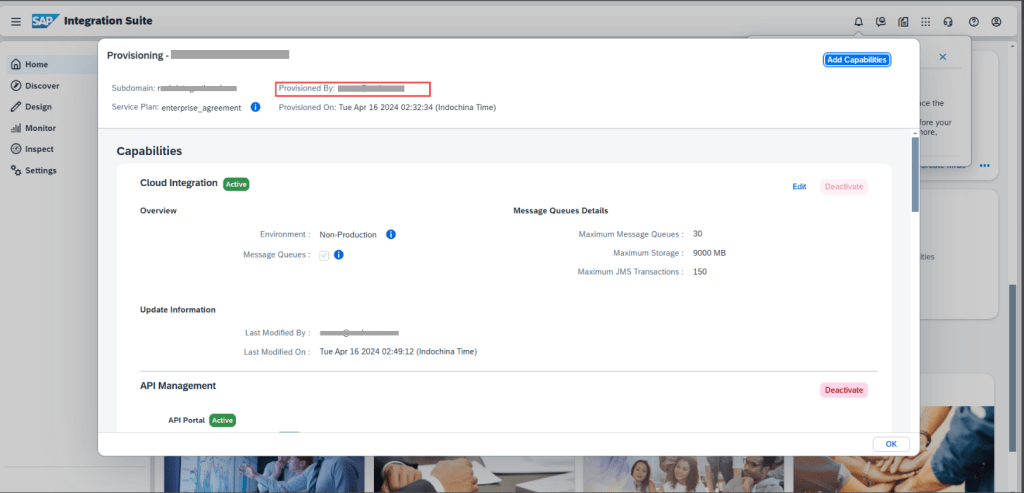

If you get issue can not access open connectors, you should be use account provision capabilities of Integration Suite to access open connectors and add SID or PID into ovethere with Role Admin

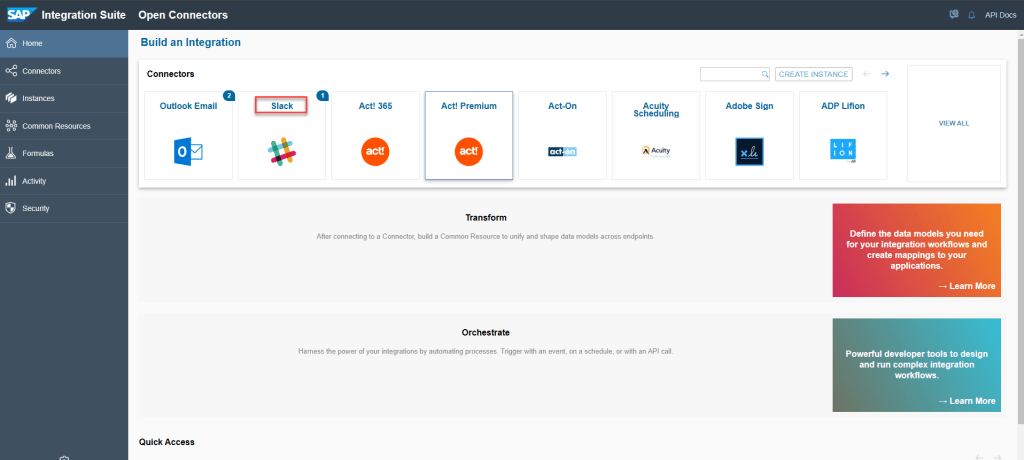

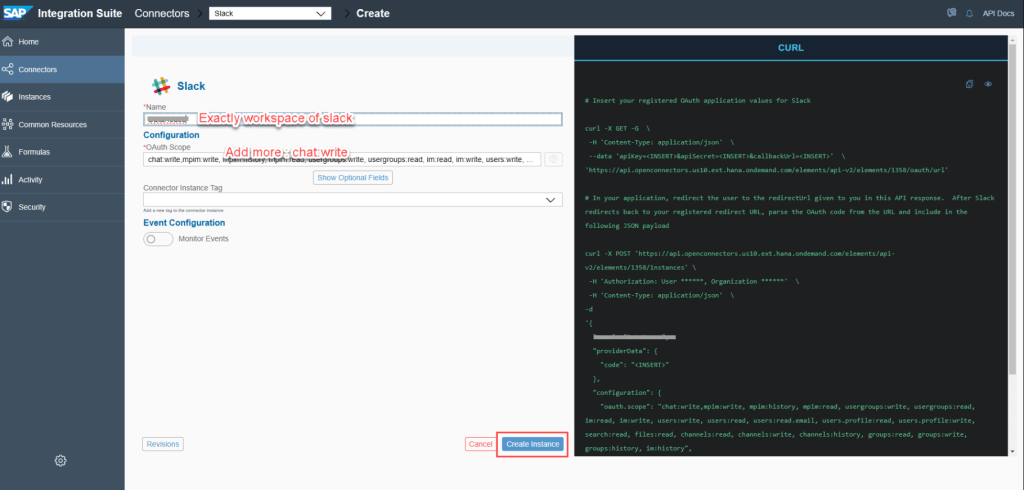

Create intance of SLACK

Save Organization Secret – User Secret – Element Secret

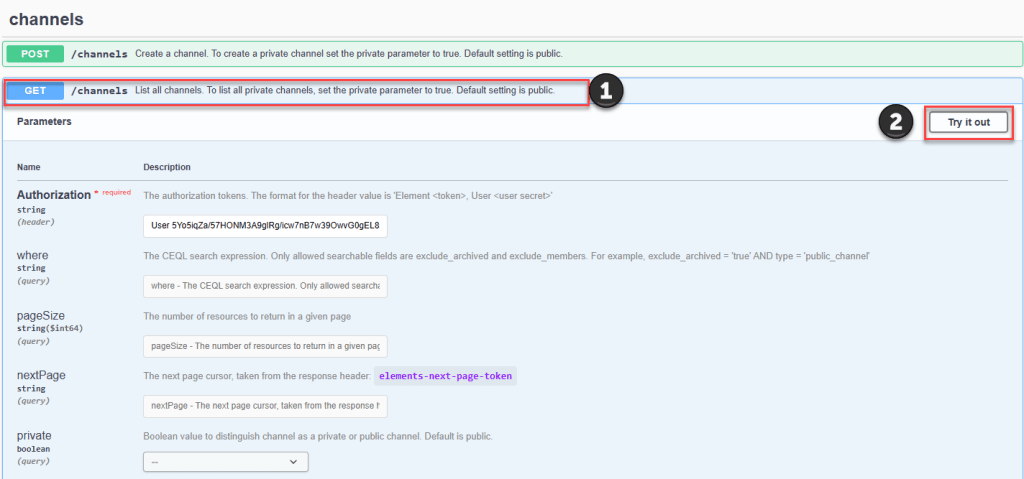

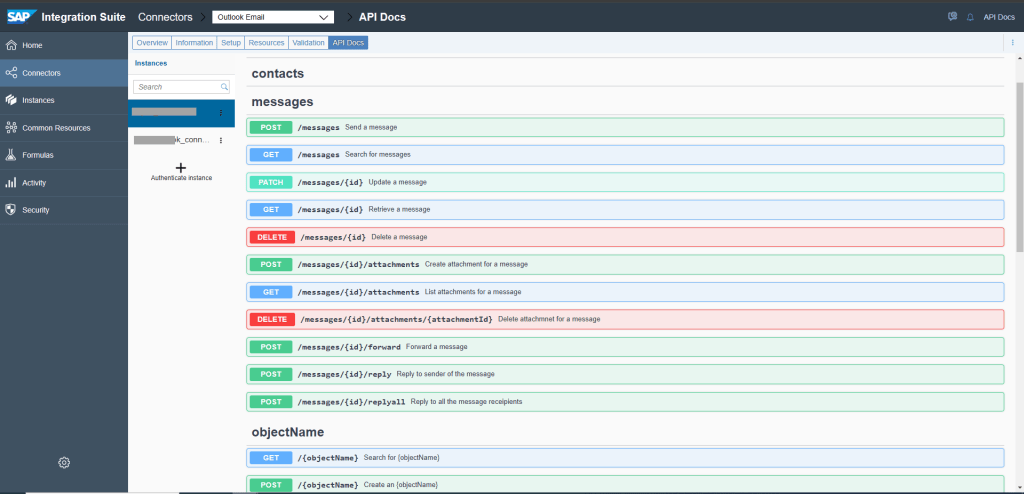

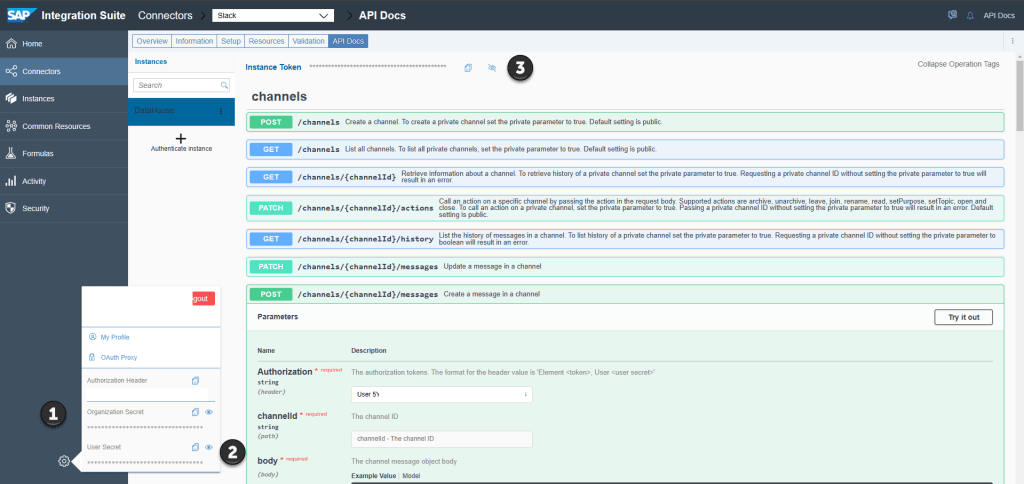

Get host of instance

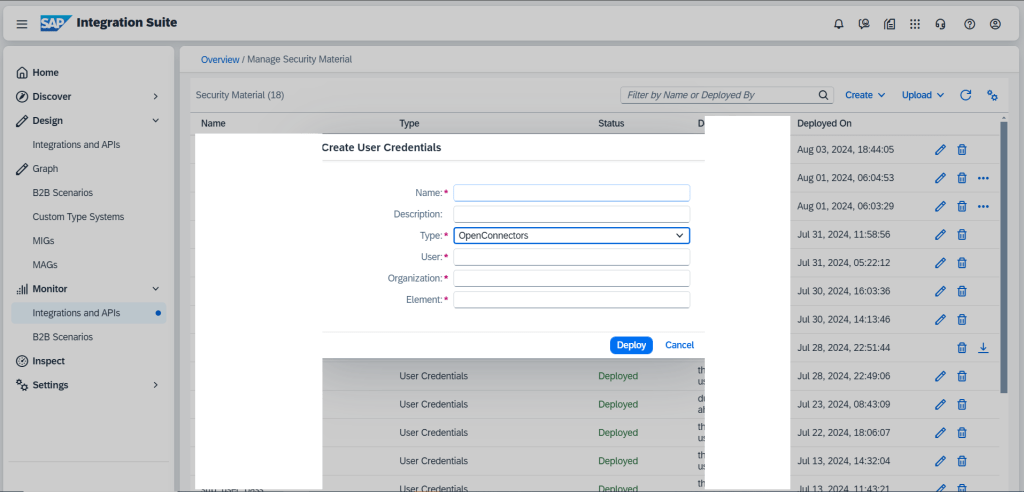

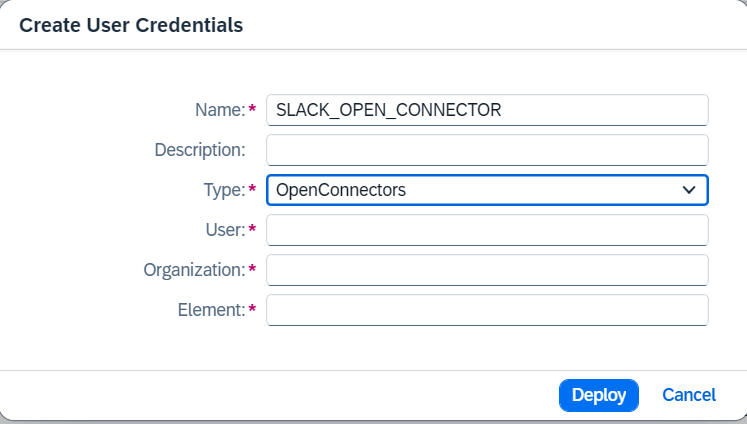

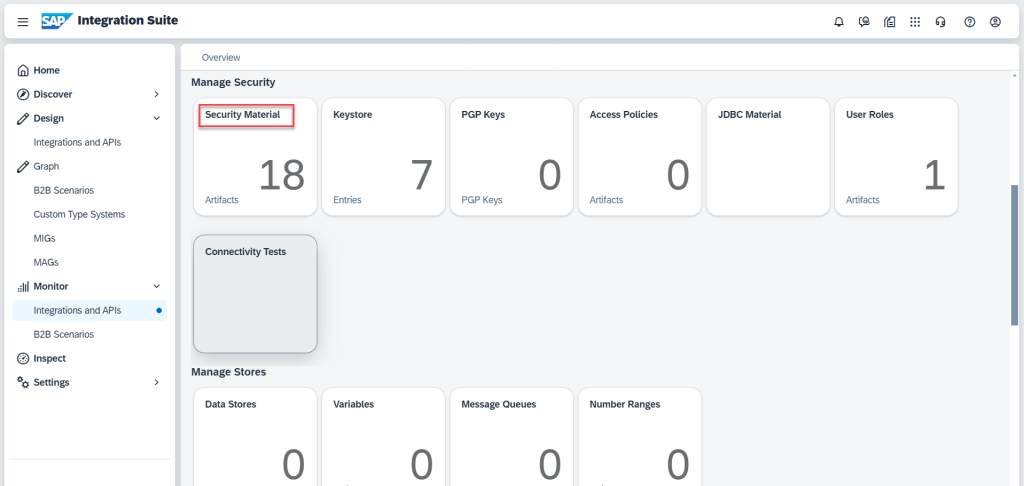

Create material security in Integration Suite

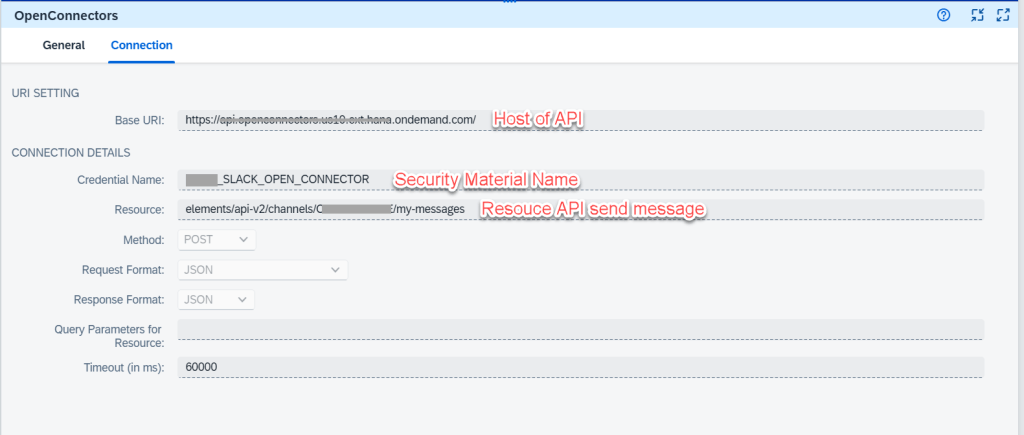

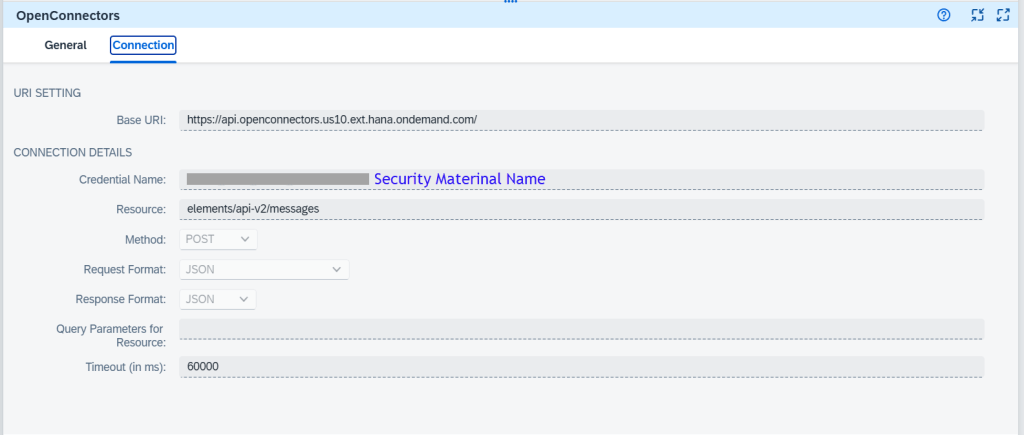

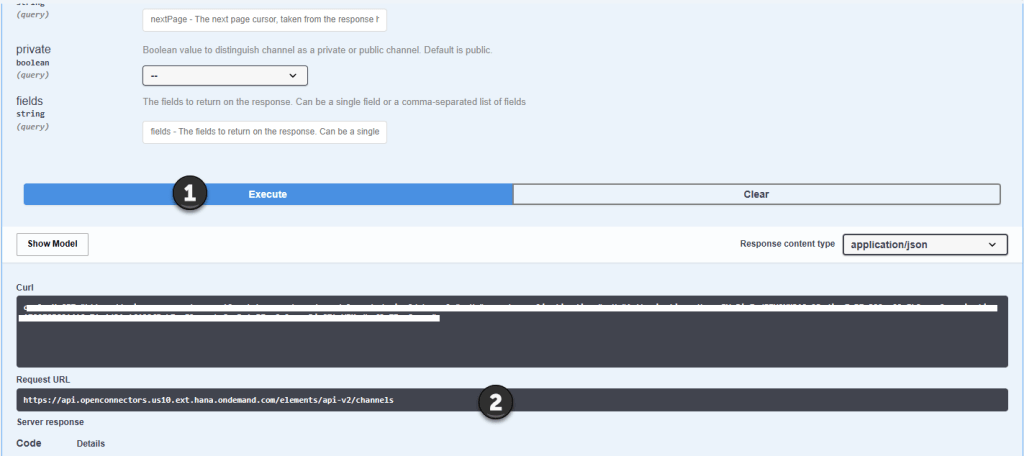

Using Open Connectors Receiver Adapter and call API POST

Working with Slack Adapter Receiver

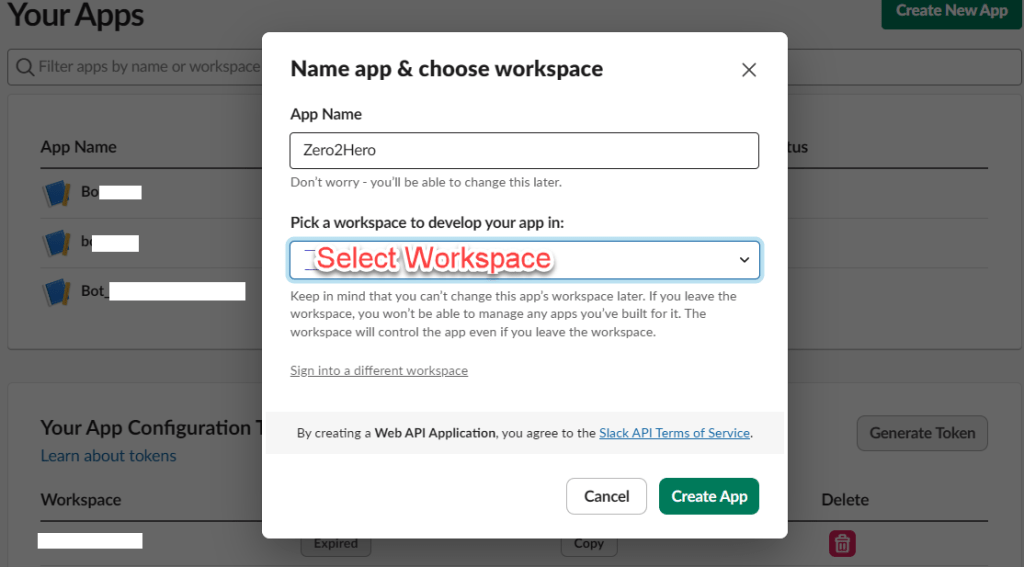

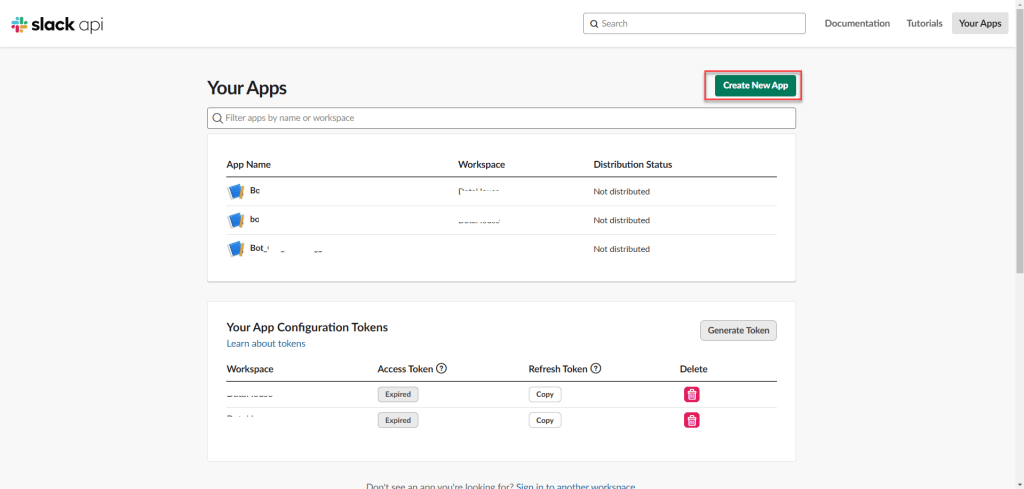

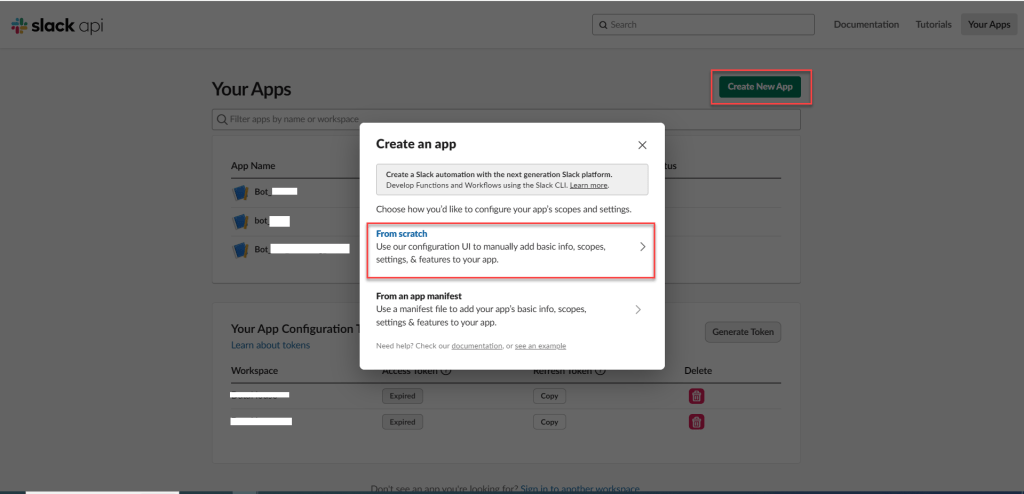

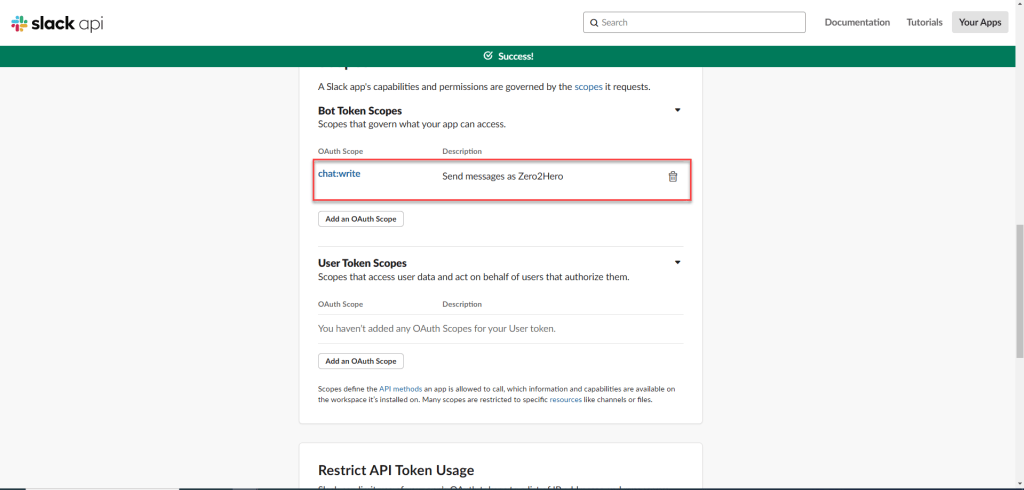

Create BOT app on Slack

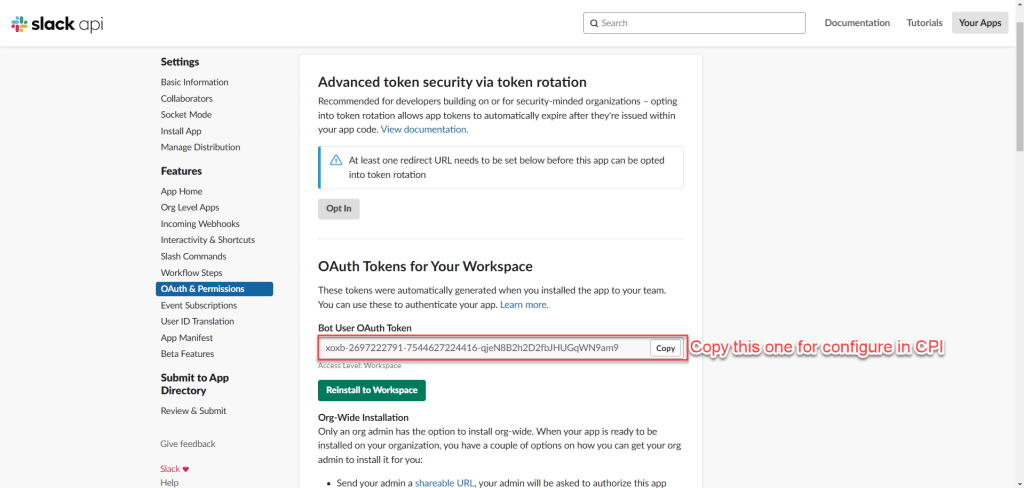

Go to Slack API

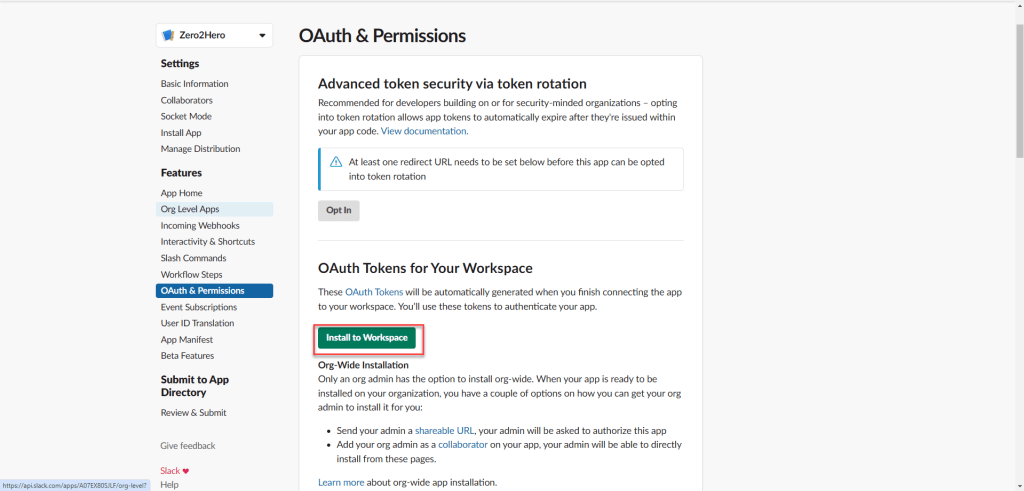

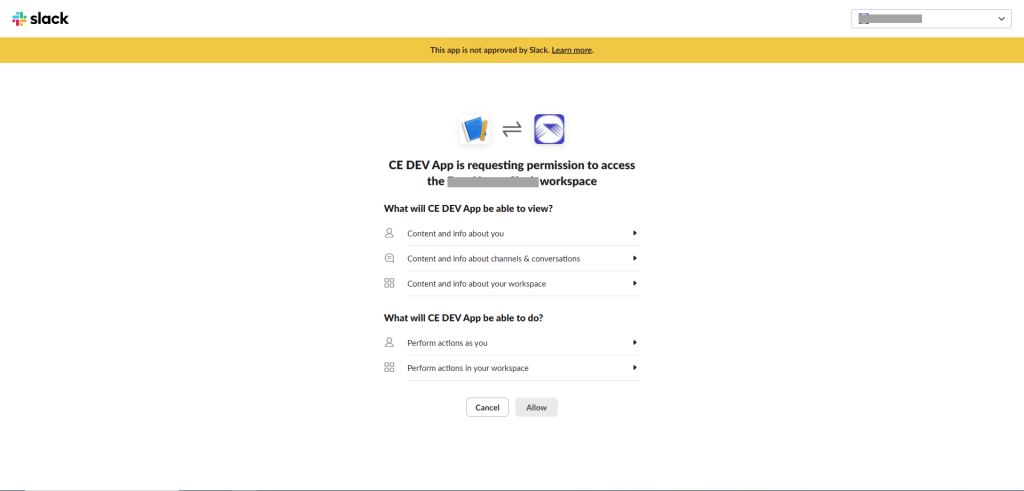

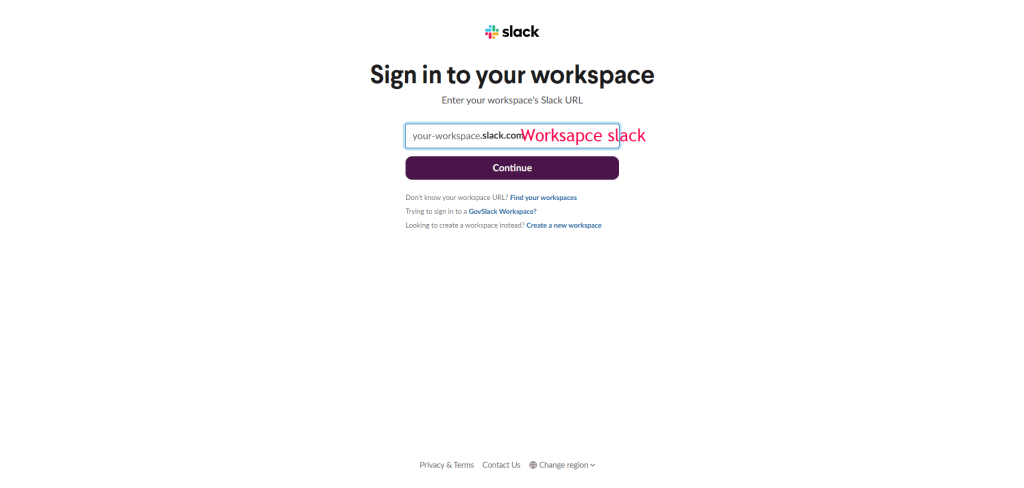

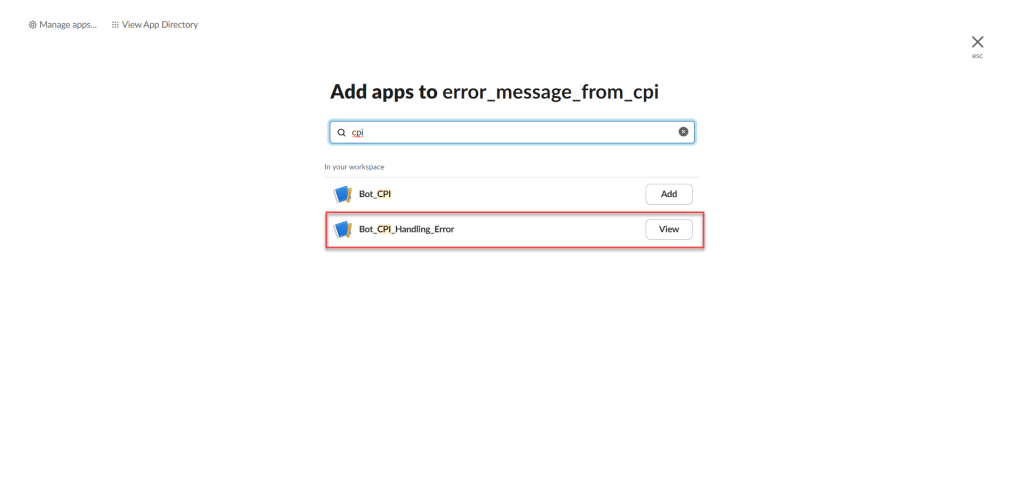

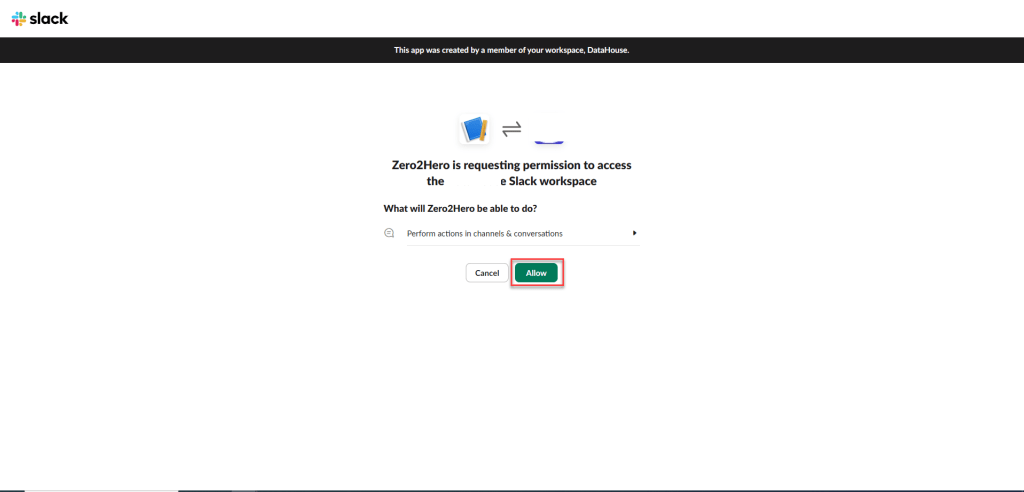

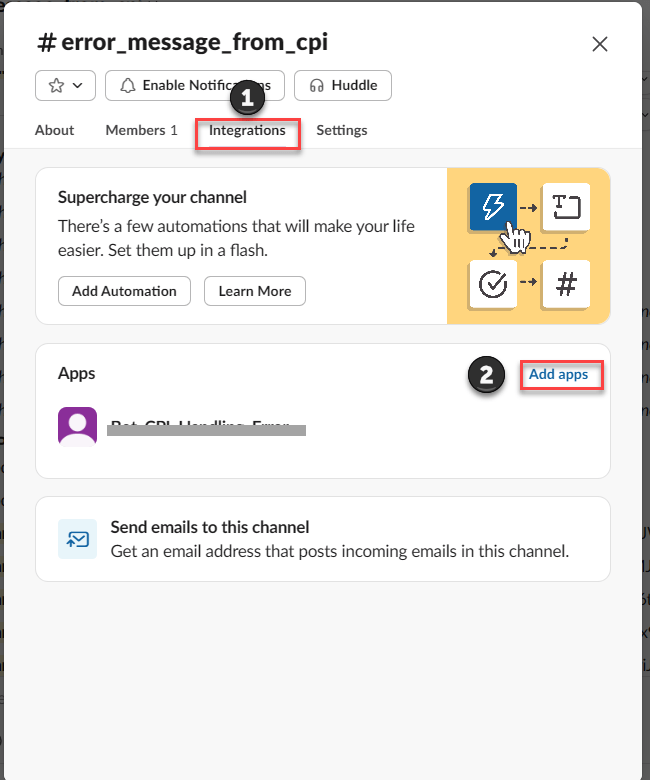

Add app into slack integration

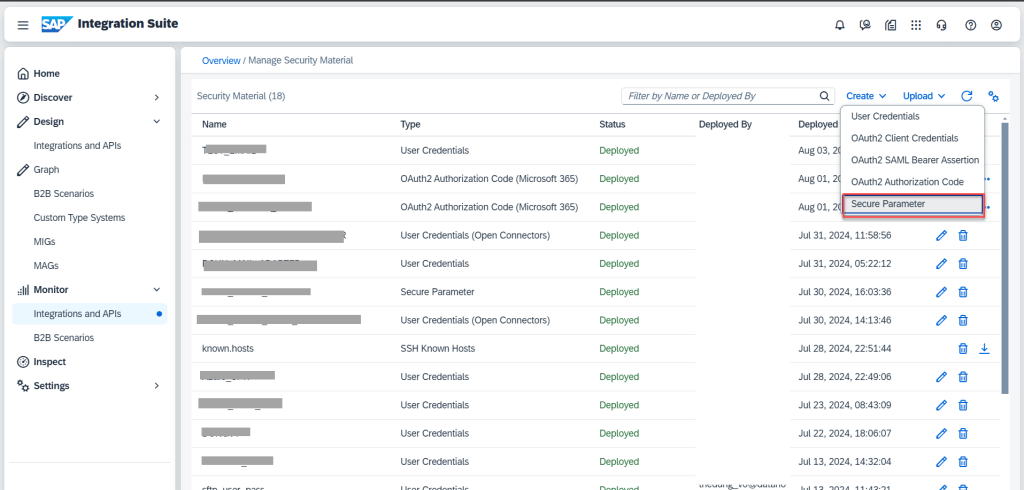

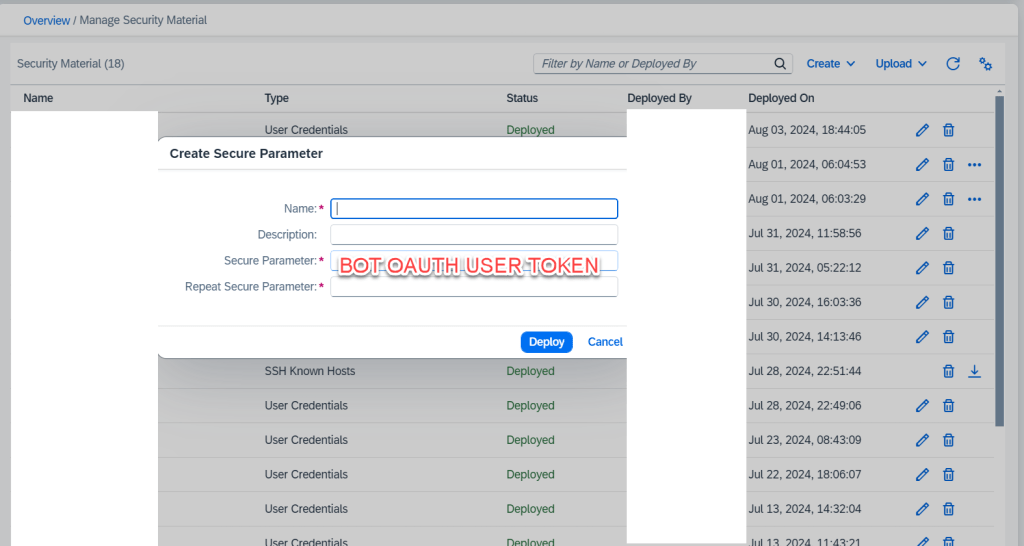

Create Sercurity Material in CPI

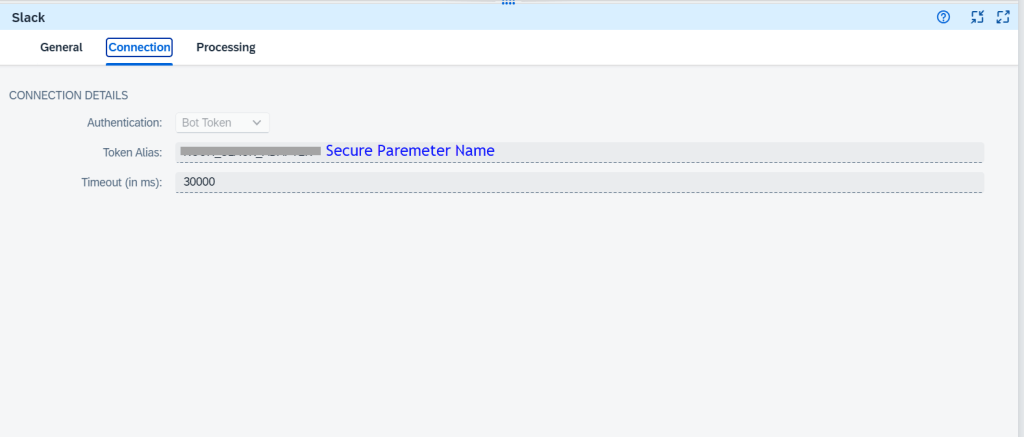

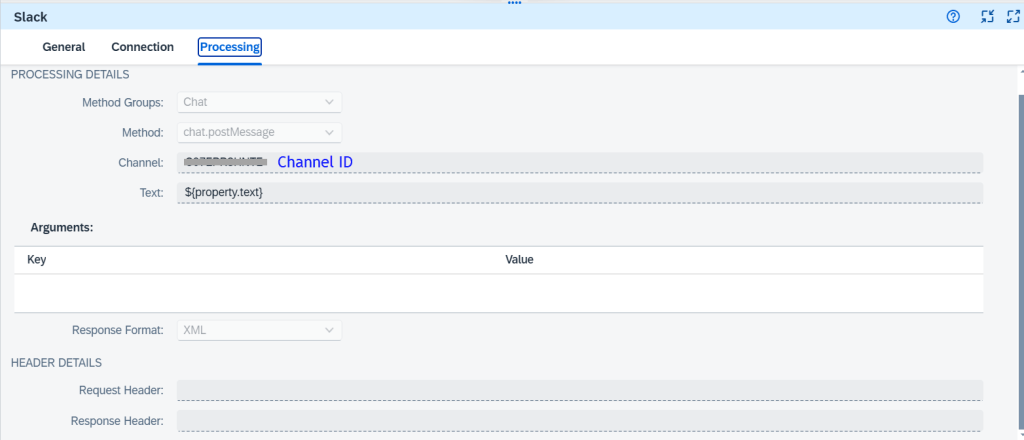

Configuration Slack Adapter in CPI

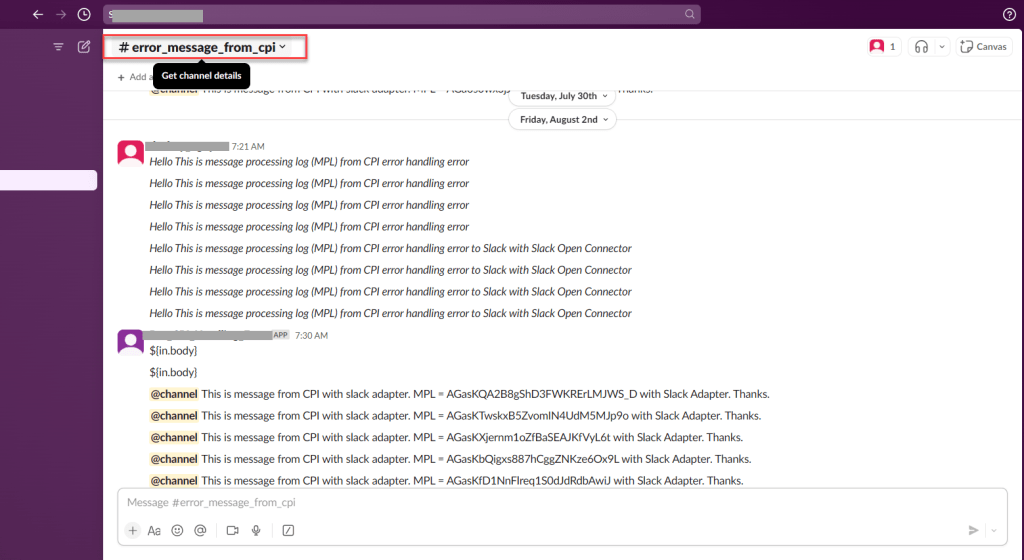

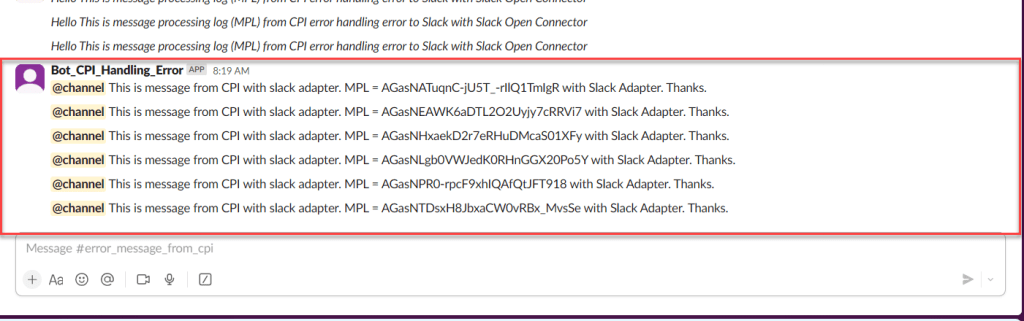

Demo

Working with Outlook 365 in Open Connector to send message via email

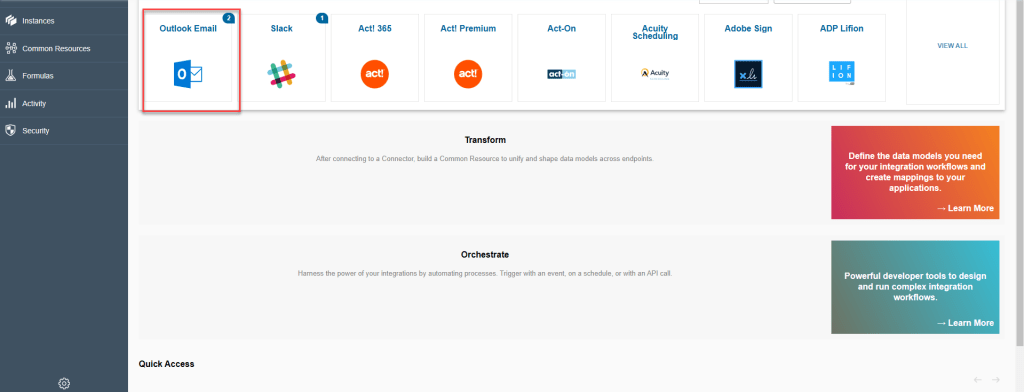

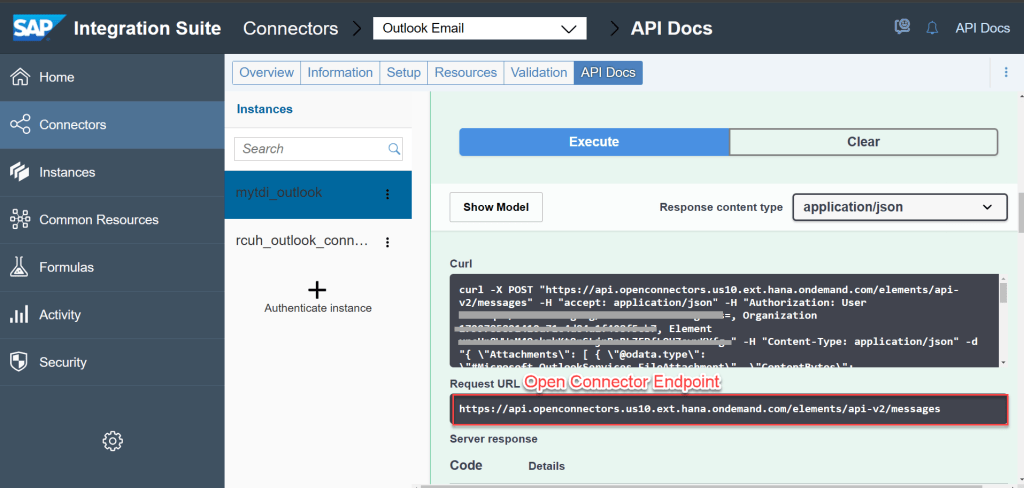

Configuration in Open Connector

With Open Connector email, no need configure on admin 365 page. But must be use exactly email sender, from accordingly with email trust with open connector.

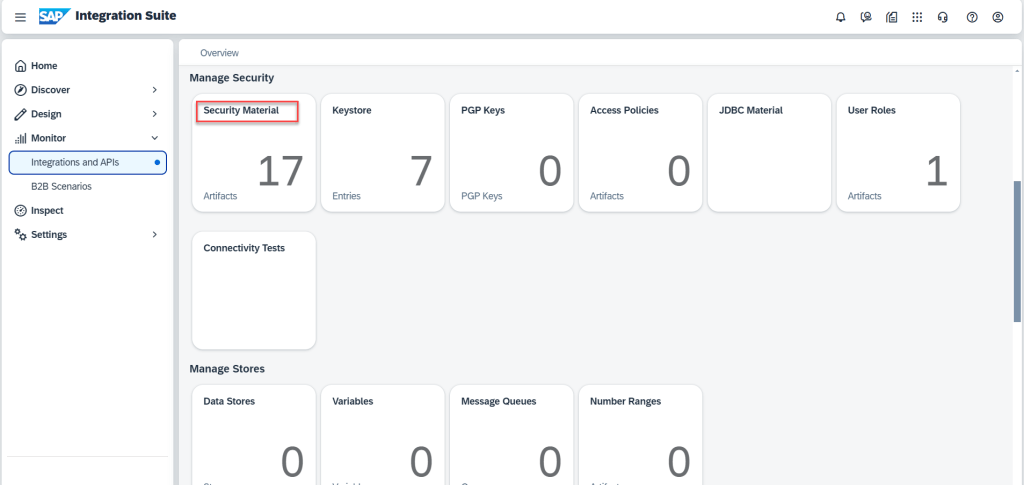

Create security material in CPI

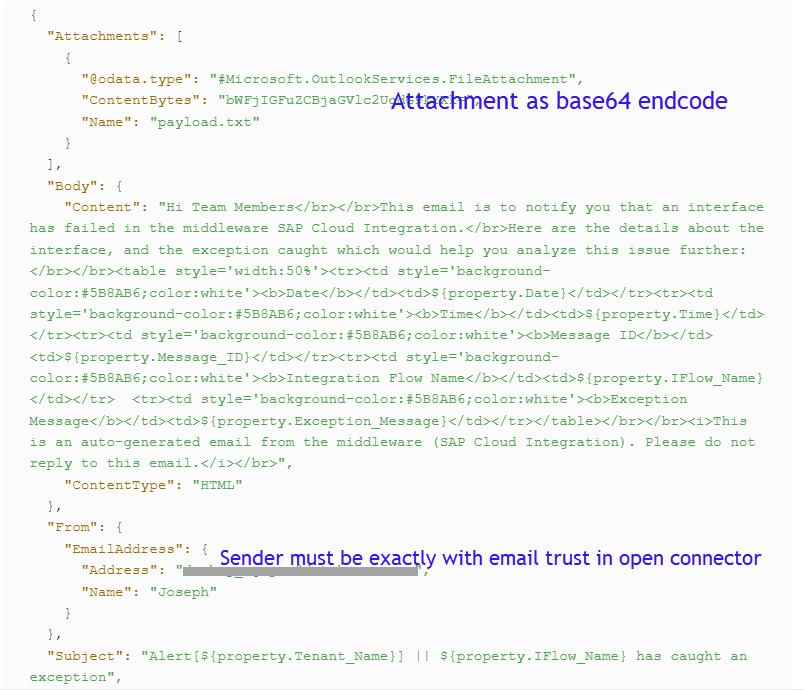

Using Open connector receiver adapter in IFLOW

Demo

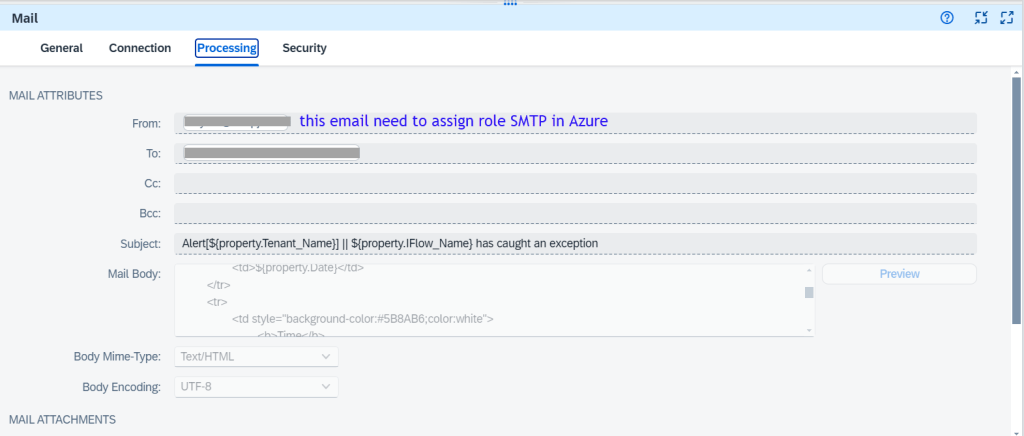

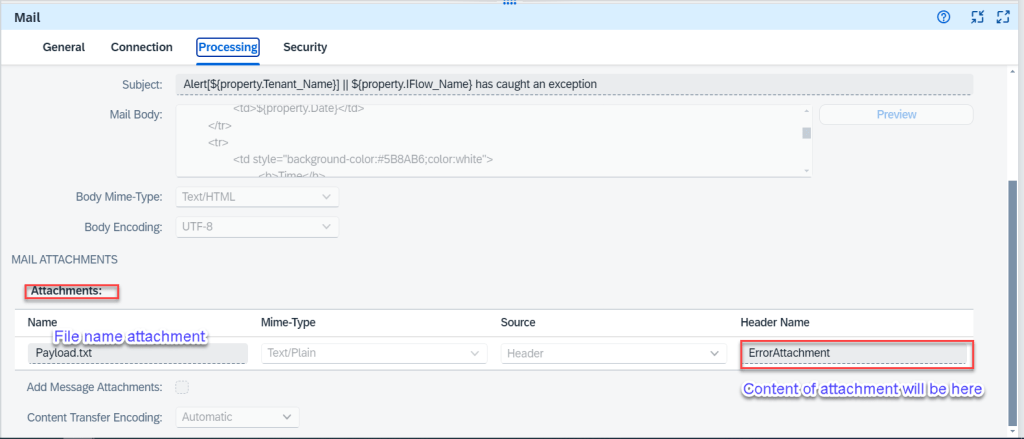

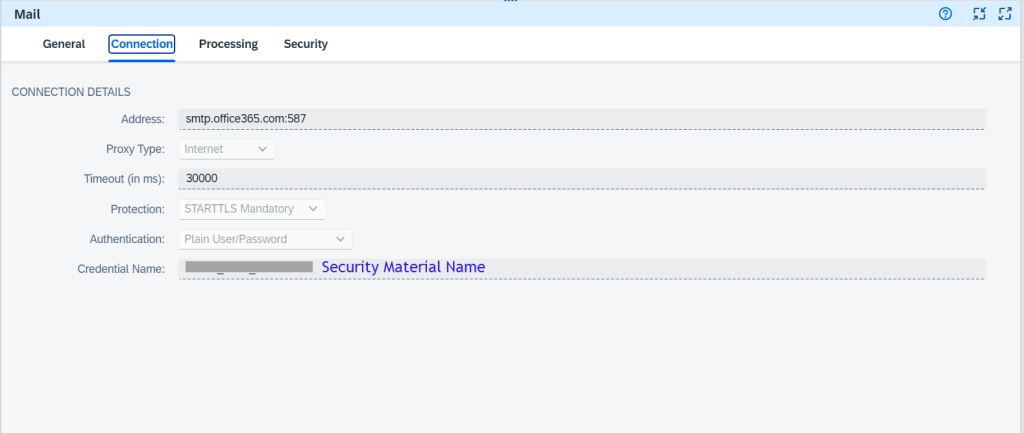

Working with Mail Adapter to send message via email

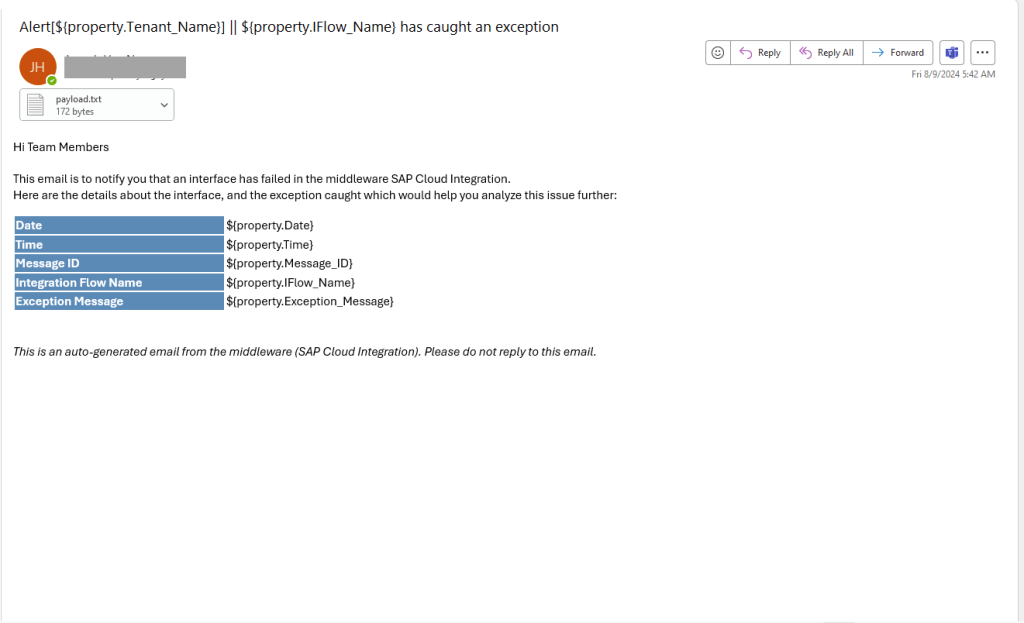

Demo

Working with Microsoft Graph API to send message via MS Team

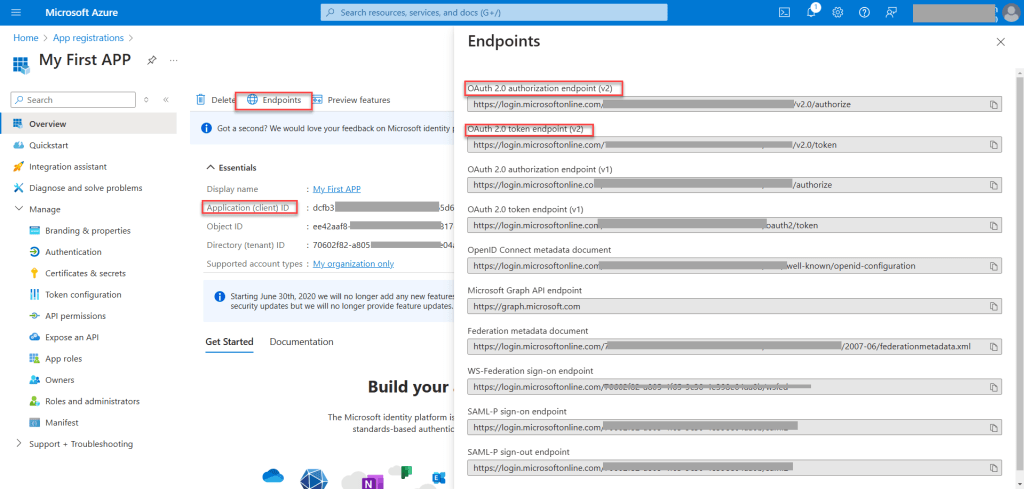

Create OAuth Client/App in Microsoft Azure Active Directory

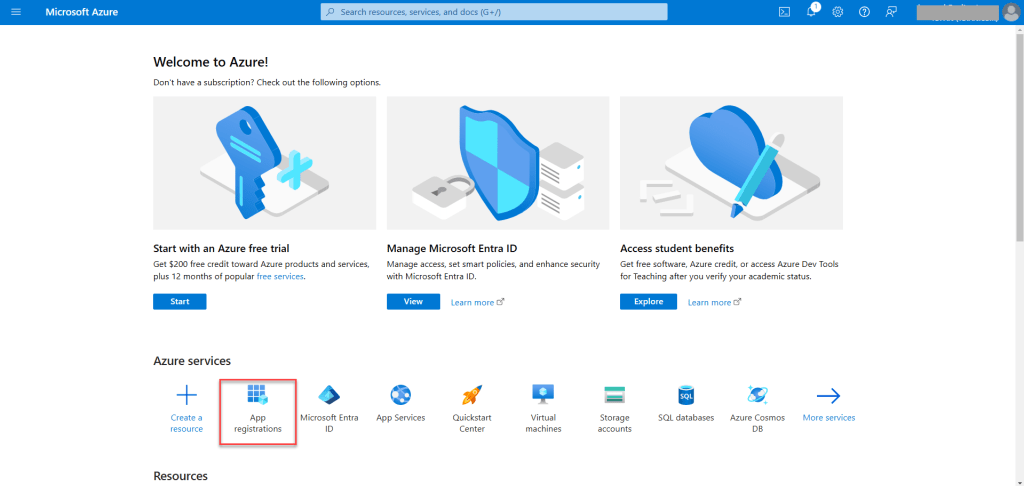

Go to https://portal.azure.com/

You need to save these information to use for next step

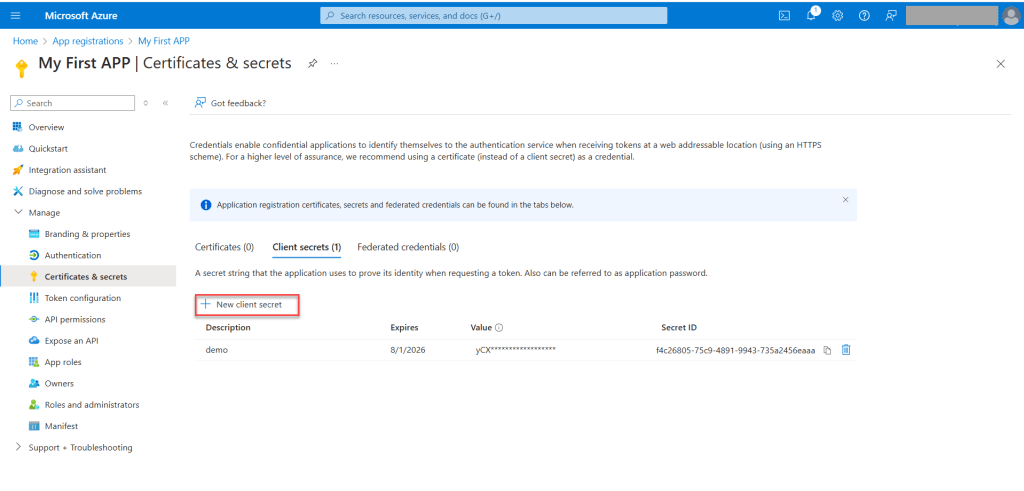

Create secret ID

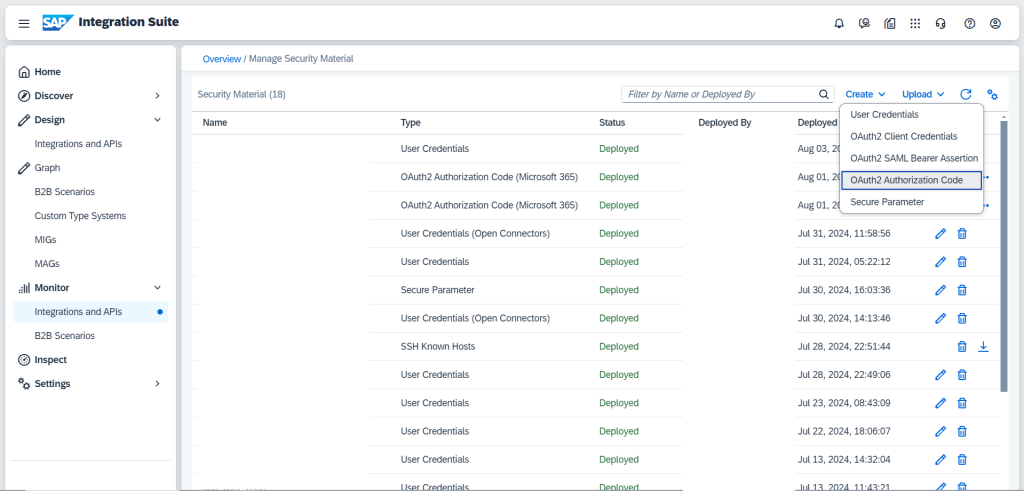

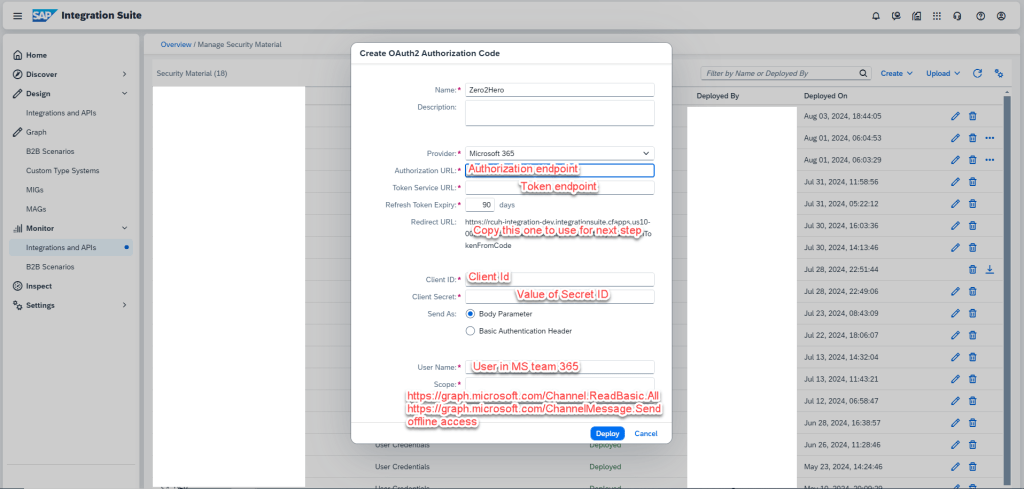

Create OAuth2 Authorization Code Credential in your SAP Cloud Integration Tenant

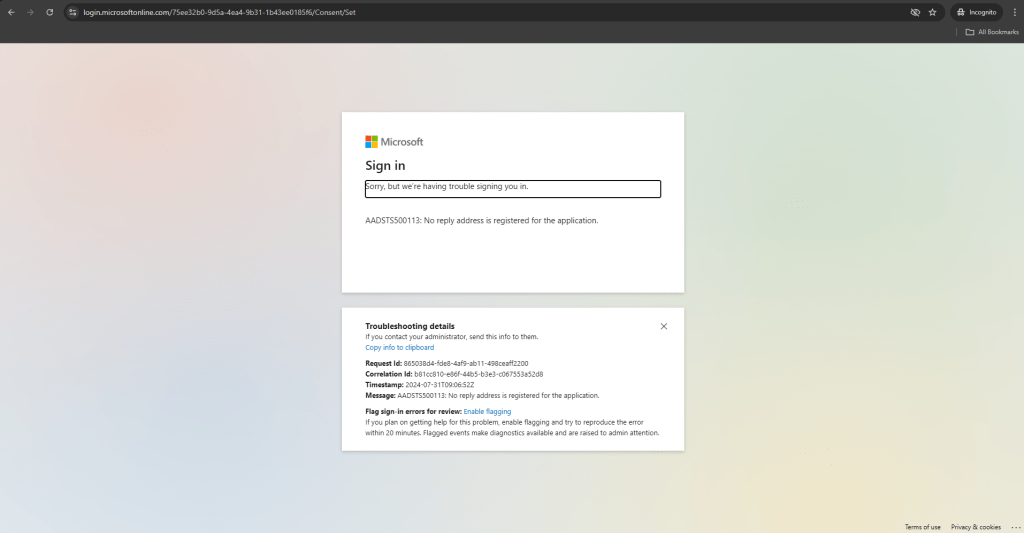

After this one, You will receive issue but do not worries about that

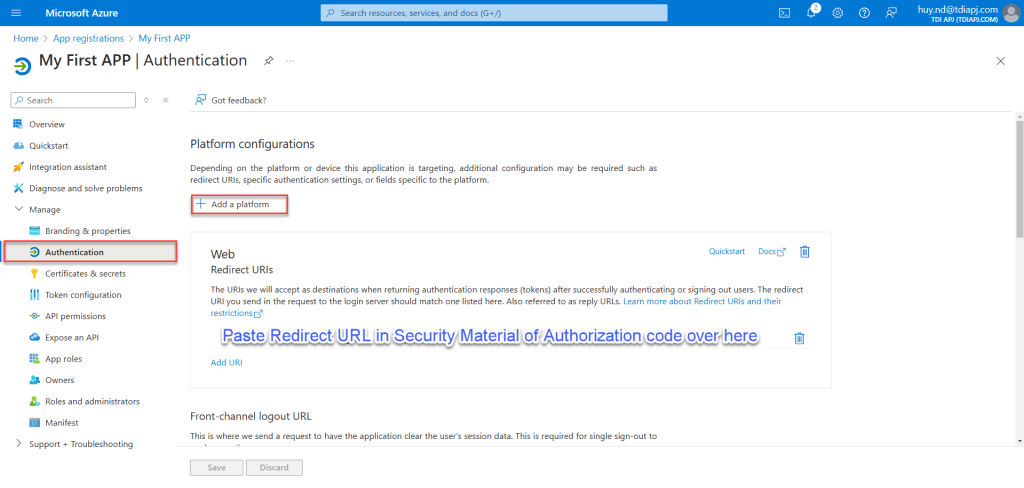

Add Web Redirect UrRIs for app

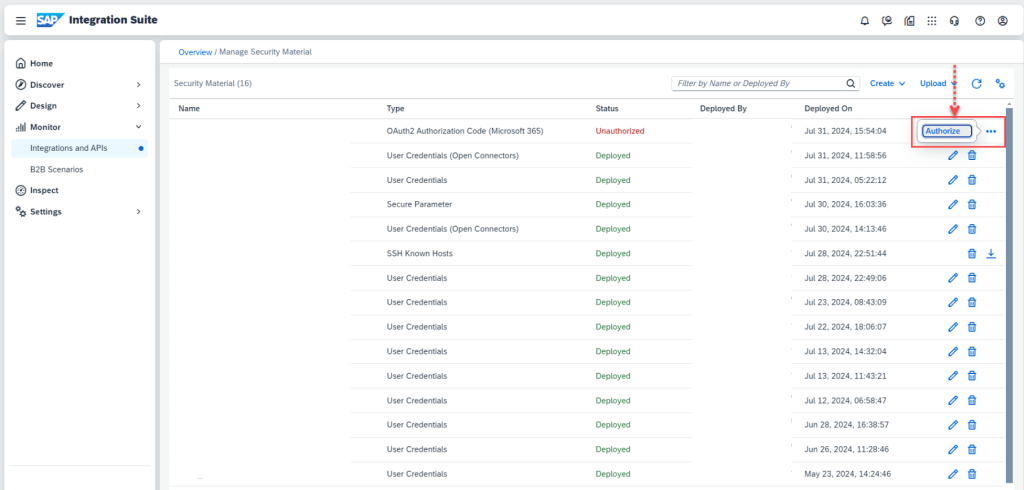

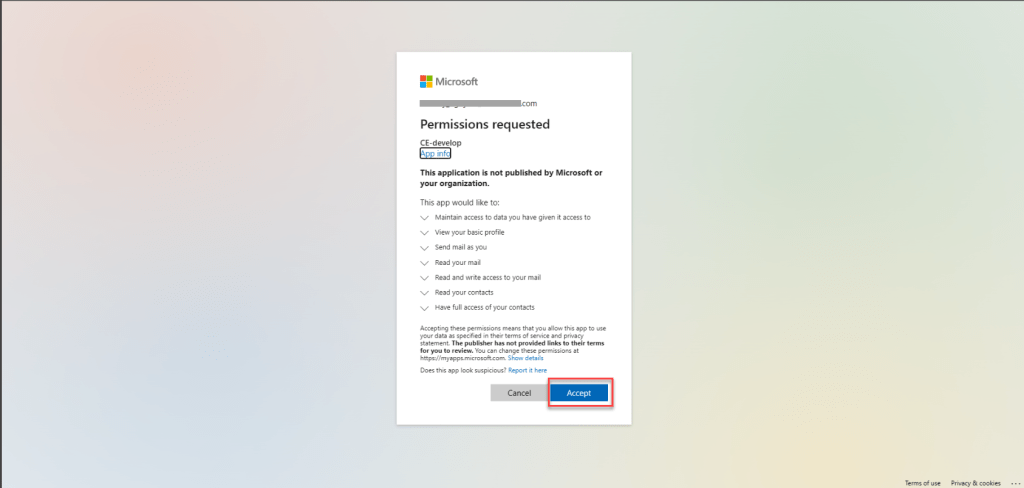

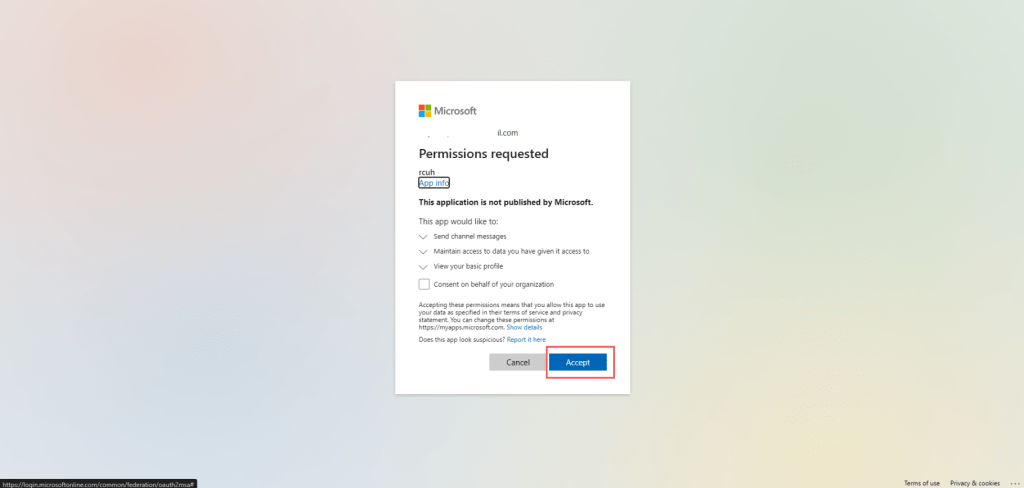

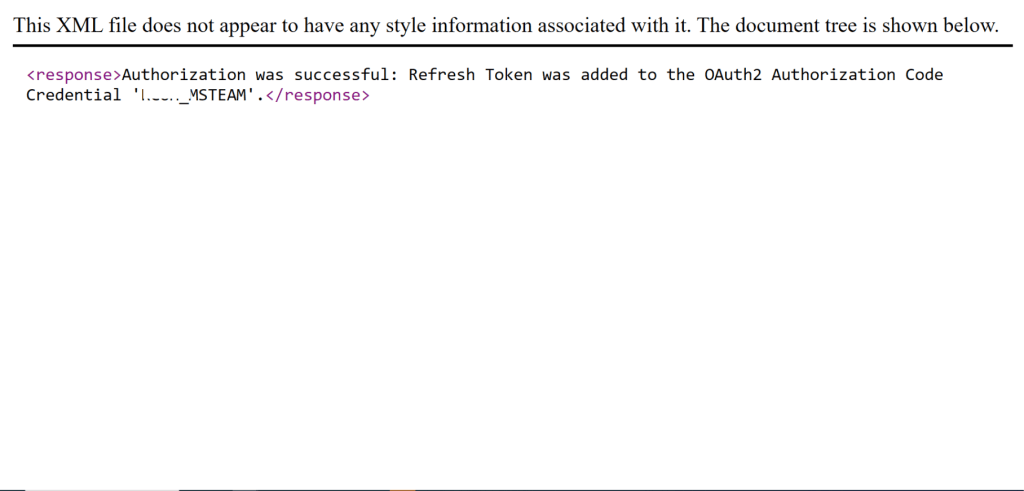

Authorize again

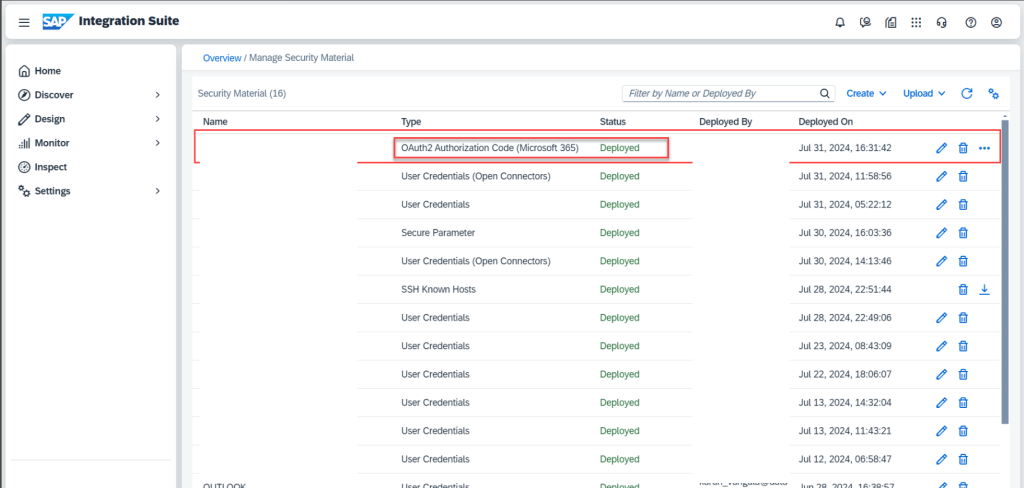

Check in security material

Create groovy script to get access token from security material and assign into header

/* Refer the link below to learn more about the use cases of script.
https://help.sap.com/viewer/368c481cd6954bdfa5d0435479fd4eaf/Cloud/en-US/148851bf8192412cba1f9d2c17f4bd25.html

If you want to know more about the SCRIPT APIs, refer the link below
https://help.sap.com/doc/a56f52e1a58e4e2bac7f7adbf45b2e26/Cloud/en-US/index.html */
import com.sap.gateway.ip.core.customdev.util.Message
import java.util.HashMap
import com.sap.gateway.ip.core.customdev.util.Message
import com.sap.it.api.securestore.SecureStoreService
import com.sap.it.api.securestore.AccessTokenAndUser
import com.sap.it.api.securestore.exception.SecureStoreException
import com.sap.it.api.ITApiFactory
import java.nio.charset.StandardCharsets
import groovy.json.JsonOutput
import java.util.Base64
import java.util.LinkedHashMap
def Message processData(Message message) {
     SecureStoreService secureStoreService = ITApiFactory.getService(SecureStoreService.class, null);
      // fetch access token
    AccessTokenAndUser accessTokenAndUser = secureStoreService.getAccesTokenForOauth2AuthorizationCodeCredential("<< SECURITY MATERIAL NAME >>");
    String token = accessTokenAndUser.getAccessToken();

    // set the Authorization header with the access token
    message.setHeader("Authorization", "Bearer "+token);
    message.setHeader("Content-Type","application/json");
    return message;
}

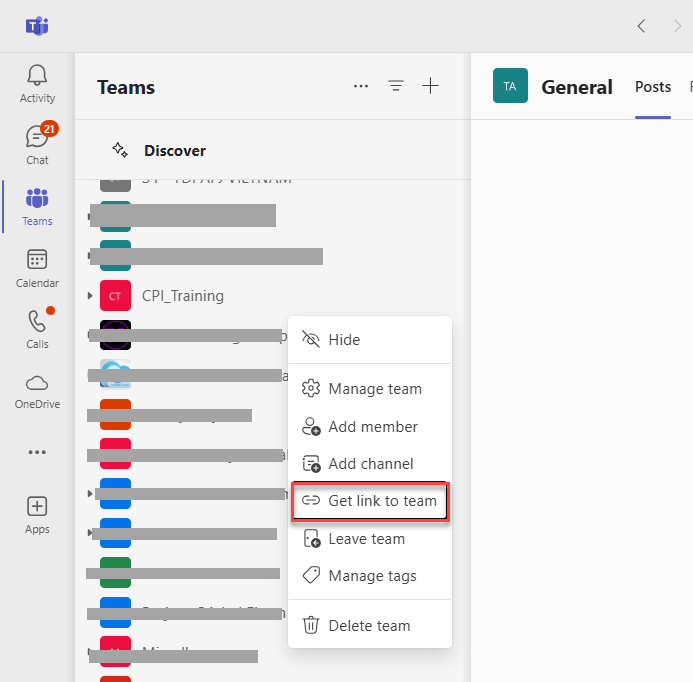

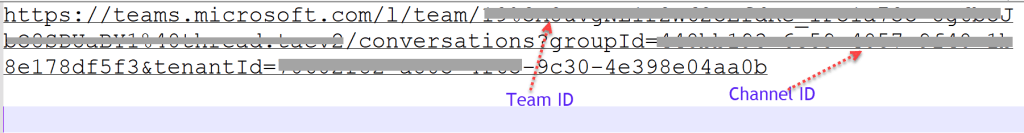

Determine MS Team ID and Channel ID

OK, now we will determine MS team ID and channel ID to send message

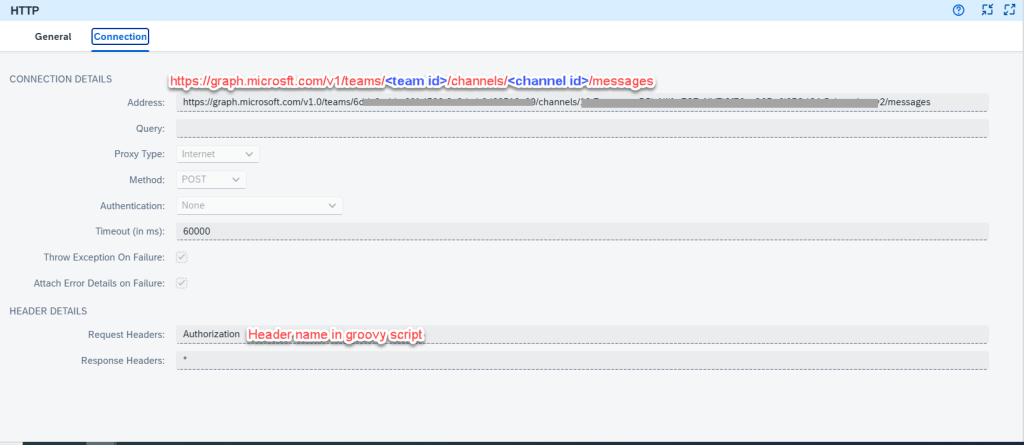

Using http receiver adapter to send message to team with Microsoft graph API

Payload to send message

{
  "body": {
    "contentType": "html",
    "content": "Hi Team Members</br></br>This email is to notify you that an interface has failed in the middleware SAP Cloud Integration.</br>Here are the details about the interface, and the exception caught which would help you analyze this issue further:</br></br><table style='width:50%'><tr><td style='background-color:#5B8AB6;color:white'><b>Date</b></td><td>${property.Date}</td></tr><tr><td style='background-color:#5B8AB6;color:white'><b>Time</b></td><td>${property.Time}</td></tr><tr><td style='background-color:#5B8AB6;color:white'><b>Message ID</b></td><td>${property.Message_ID}</td></tr><tr><td style='background-color:#5B8AB6;color:white'><b>Integration Flow Name</b></td><td>${property.IFlow_Name}</td></tr>  <tr><td style='background-color:#5B8AB6;color:white'><b>Exception Message</b></td><td>${property.Exception_Message}</td></tr></table></br></br><i>This is an auto-generated email from the middleware (SAP Cloud Integration). Please do not reply to this email.</i></br>"
  }

}

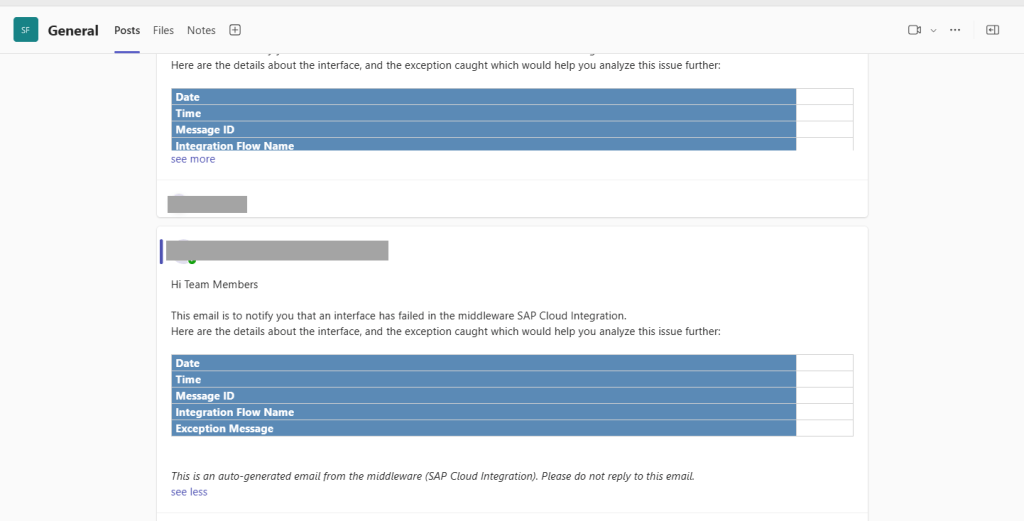

Demo

SUMMARY

In this blog, I shared How to communicate with social platform like Slack, Outlook 365 and MS Team. This one will be useful in cases we need to push notification from CPI to operation team for handle error

Thanks for your time to read and any question or advise, kindly leave your comment on this.

Thanks

Joseph.
