Hi guys, in this article I want to share one scenario How to trigger IDOC from CPI to SAP ERP using basic authentication. This scenario is useful in case which we want create data xml from third party and send this data xml to SAP ERP to create IDOC and posting document. Another way, It’s called Inbound IDOC XML. Kindly take a look this diagram to get more clearly

In this article, we will create scenario as :

  • Third party will send data XML with structure ORDERS05 – Sales Order to SFTP. In fact, for simple we will use POSTMAN to send XML to CPI
  • In integration flow, for simple we just use one HTTPS for sender adapter and one IDOC for receiver adapter
  • In last, after data sent successful to SAP ERP, we will check SALES ORDER created.

Ok, here we go

Configure SAP ERP Settings

Step 1 : Active service

Go to T-Code : SICF

Search service with path : /sap/bc/srt/idoc

F8 to execute.

Step 2 : Register service

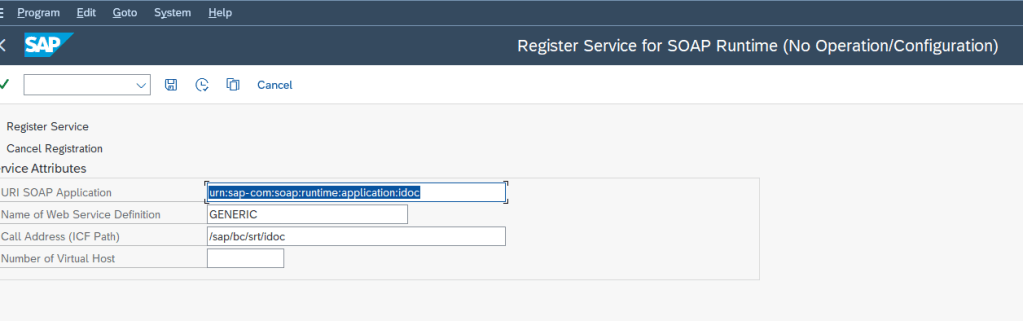

Go to T-Code : SRTIDOC

Choose Register Service. Press F8 to run with default

If service is registered, we will receive this message

else, It will be successful.

Step 3 : Run Test Service to get Endpoint.

Go to T-Code : SICF

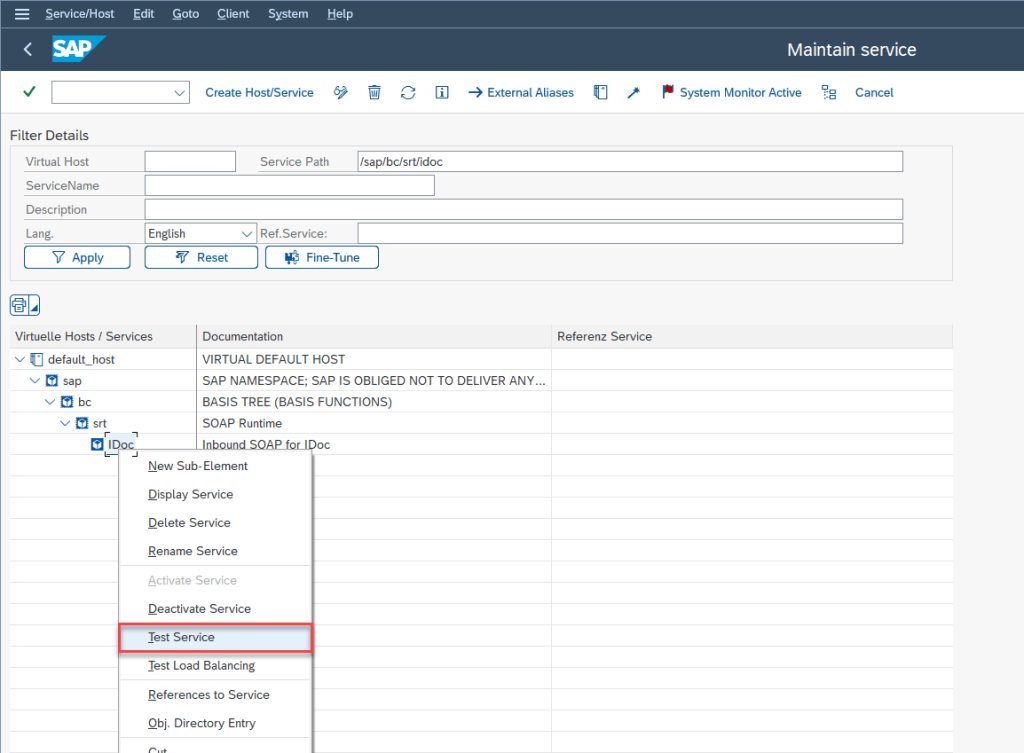

Search service /sap/bc/srt/idoc

Right click and choose Test Service

Note the URL that comes in your browser. This is the URL where your IDoc adapter in HCI needs to point. The URL will be of format :


Step 4 : Create Logical System

Go to T-Code : SALE

Create Logical System

Assign this logical system to client.

Step 5 : Create partner profile and add Inbound parameter

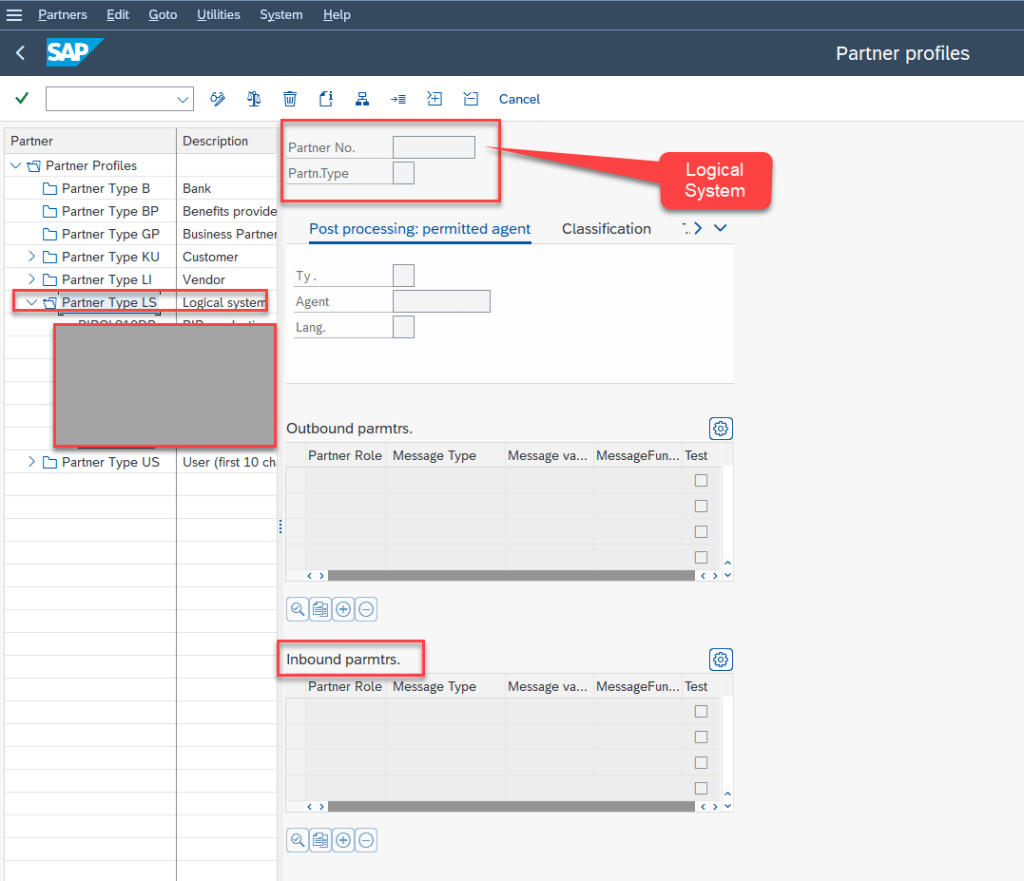

Go to T-Code : WE20

Choose partner type = LS from left side tree view

Choose create and input information in step 4 – local system as Partner No.

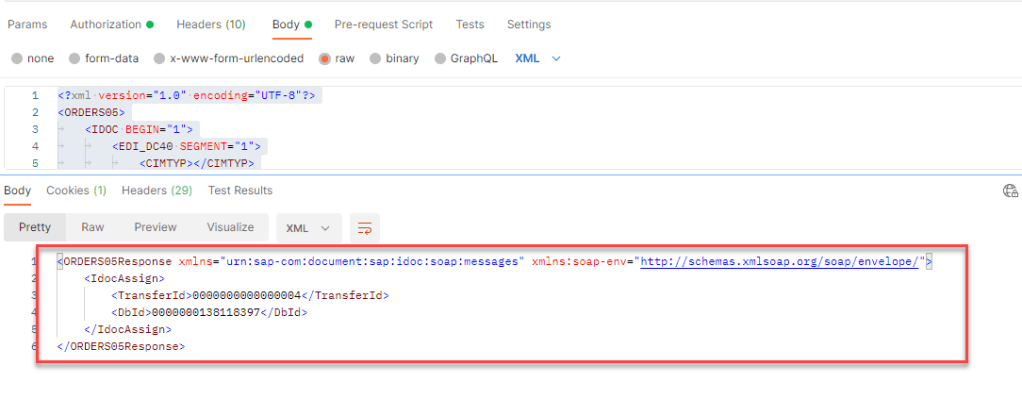

Step 6 : Test service from POSTMAN

Case 1 : No body or wrong data XML.

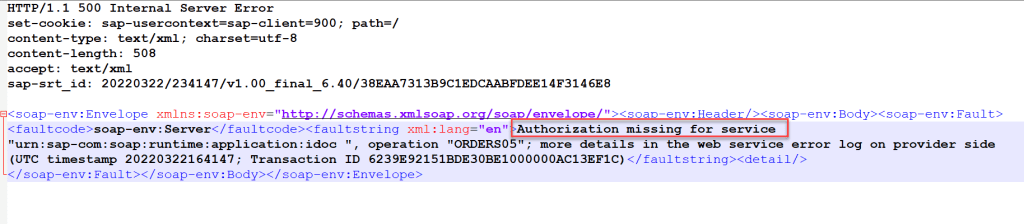

Case 2 : Wrong user/pass or User not in ROLEs

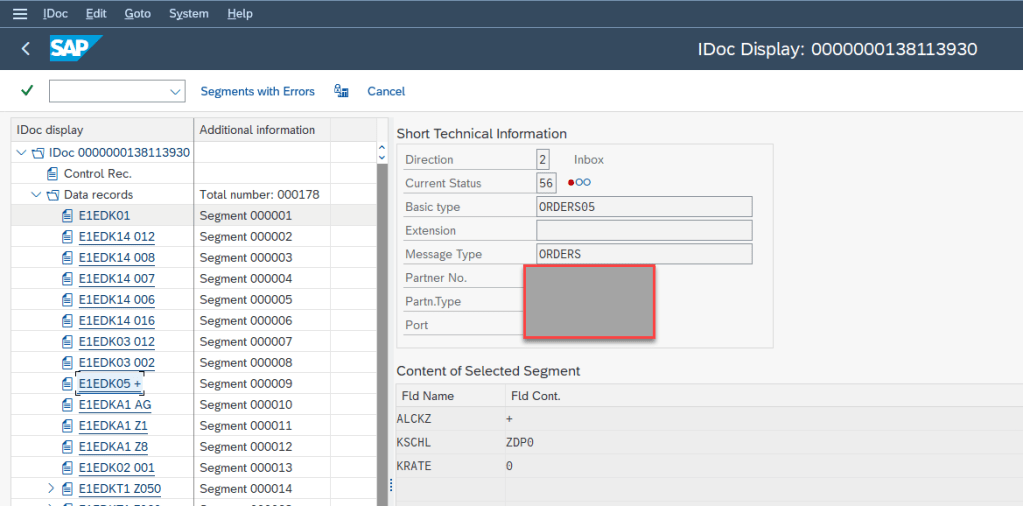

Case 3 : It’s OK. IDOC will create in SAP ERP. Check T-Code : WE02

SAP Cloud Connector Configuration

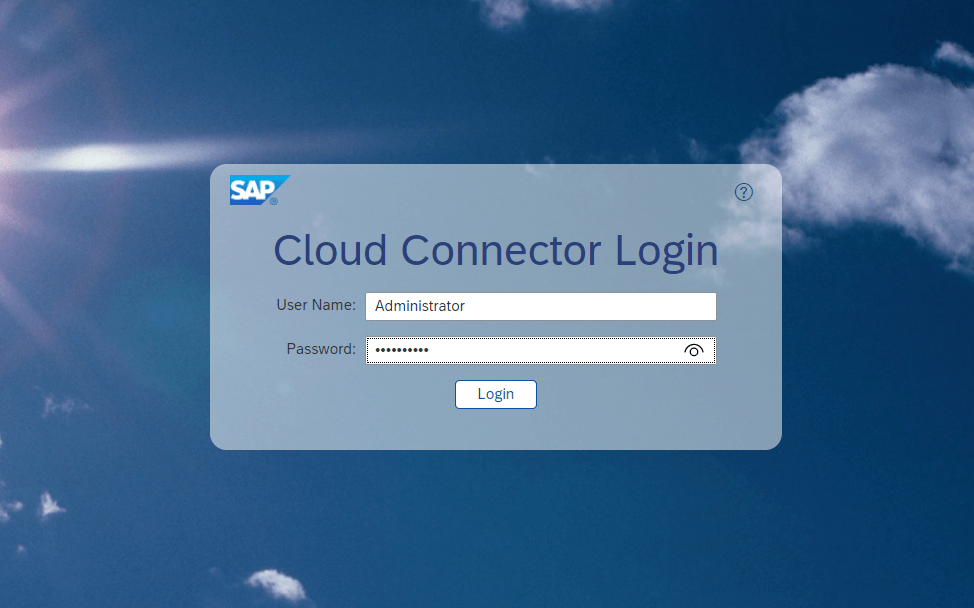

Login SAP Cloud Connector

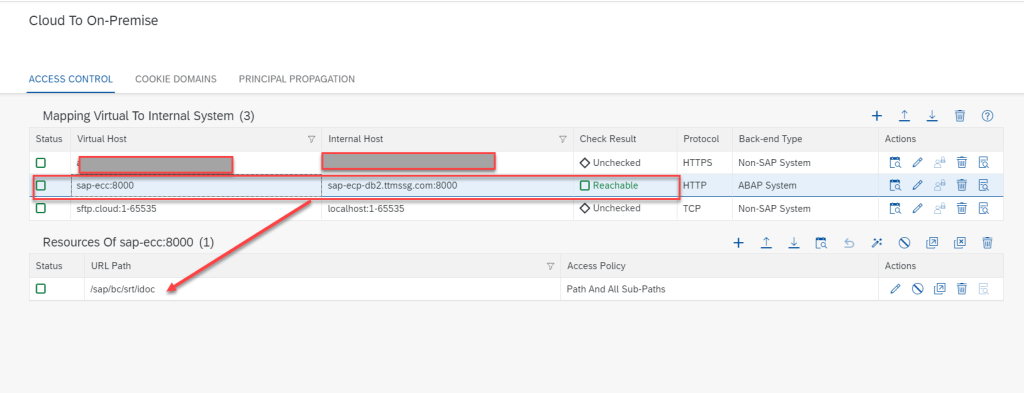

Choose Cloud to On-Premise at left side.


Back-end Type : ABAP System

Next, reference to Test Service above to take internal host and port

Next, choose virtual host

Add Resources of this host. Take in URL when run Test service in above step. In this case is : /sap/bc/srt/idoc

Finally, check on SAP BTP

CPI Configuration

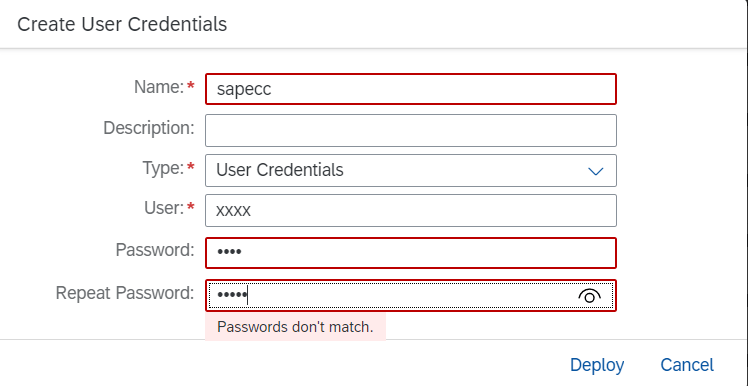

Step 1 : Create Credential Name with User/Pass use for create IDOC on SAP/ERP. This user have to create on SAP and take ROLE can create IDOC and Posting document


Go to Integration Suite Application

Go to Monitor

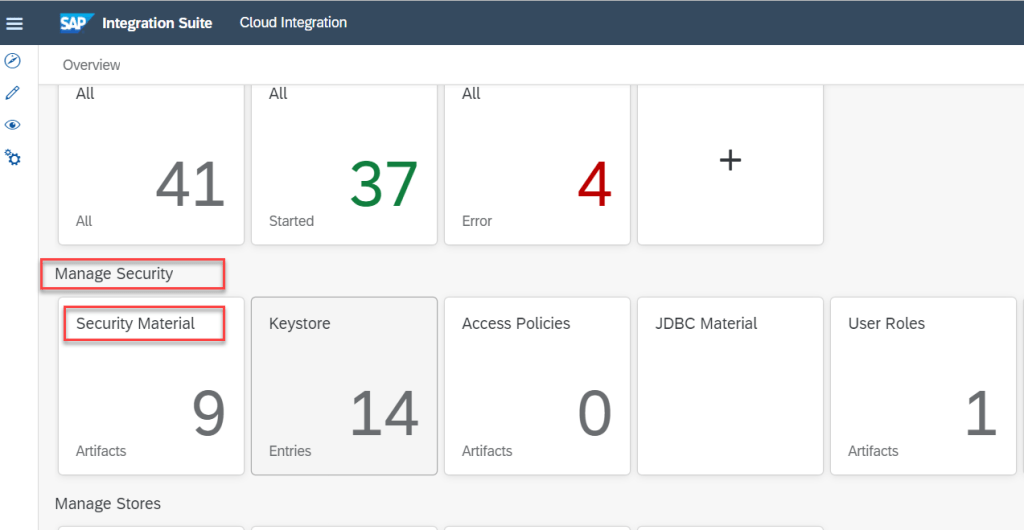

Go to Security Material under group Manage Security

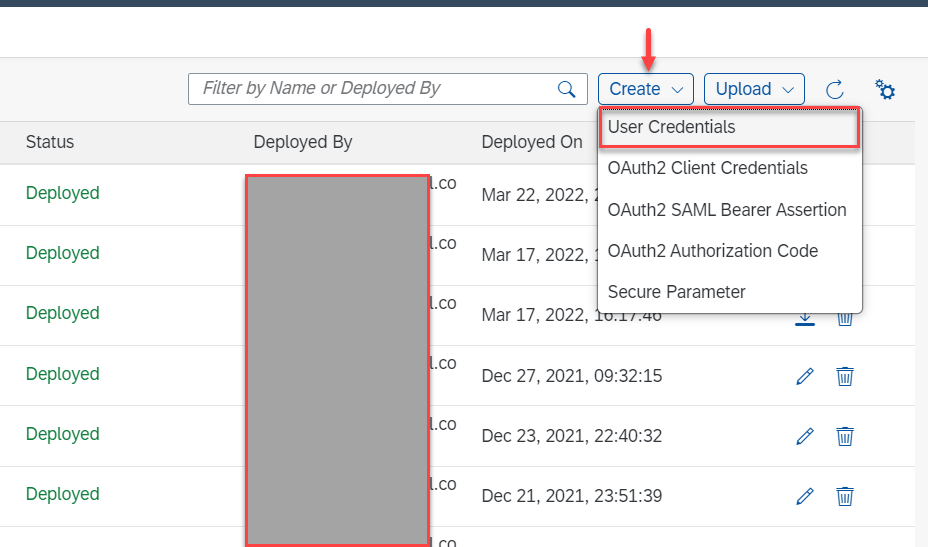

Fill user/pass. This name will use for in step config Integration Flow.

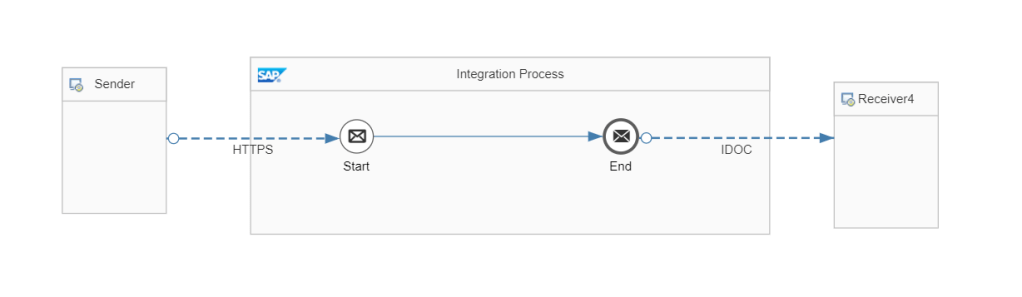

Step 2 : Design integration flow

In this integration flow, use components :

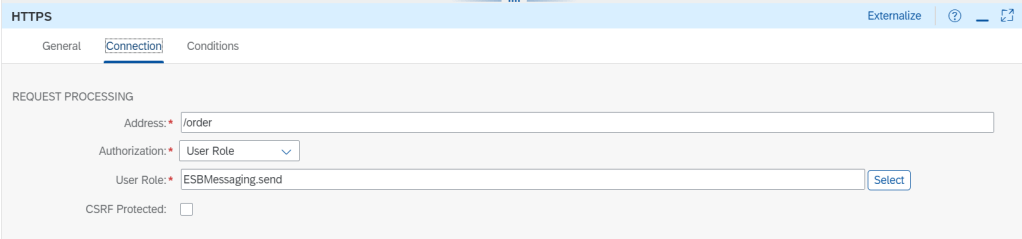

Configuration for sender HTTPS

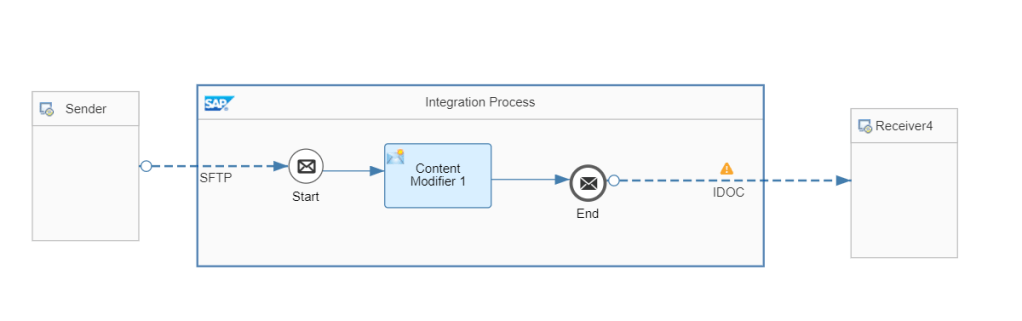

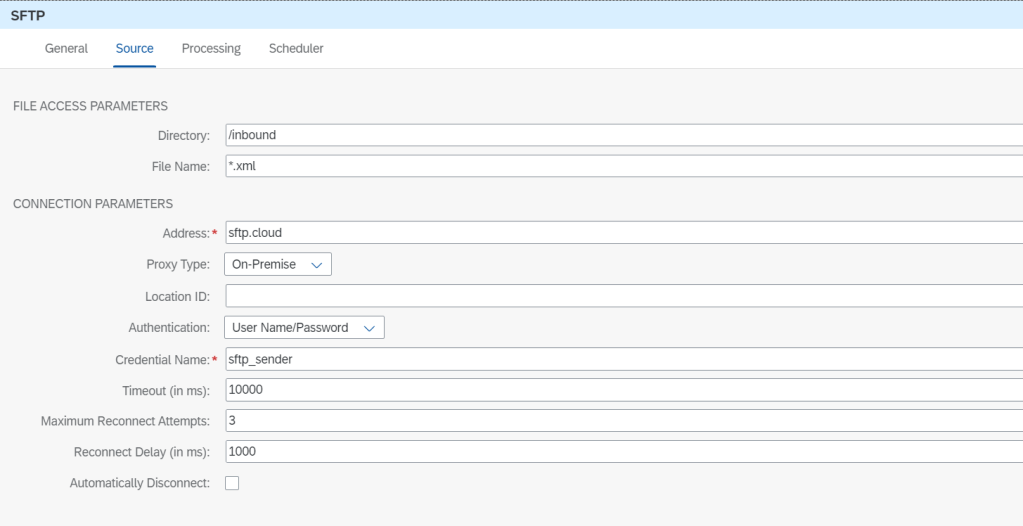

Configuration for sender SFTP ( Solution 2)

Configuration for receiver IDOC

  • (1) : Address : http://<Vitualhost on SCC> + <Resource on SCC> ? sap-client = xxx
  • (2) : On-premise
  • (3) : Basic
  • (4) : Credential name which configured in step 1 of CPI Configuration


Case 1 : No body

Case 2 : It’s OK, but invalid Partner Profile



SAP/ERP T-Code : WE02

Case 3 : SAP Cloud Connector cannot connect to backend

With this case, check SAP Cloud Connector to check destination

Case 4 : Connection time out

How to track SAP CPI generated IDOC in SAP ERP

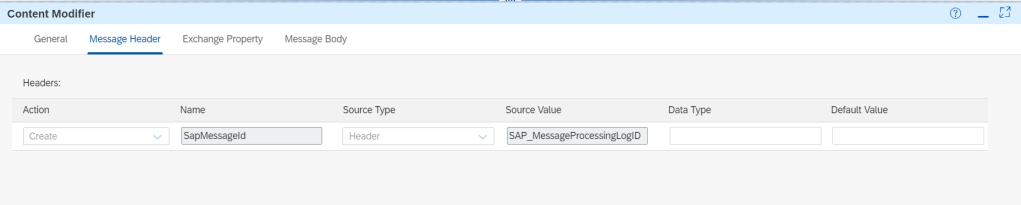

Add Content Modifier component.

Add header as below:

Source ValueSAP_MessageProcessingLogID
Source TypeHeader

Send data to SAP/ERP.

Check control record => details. We will see one text look like

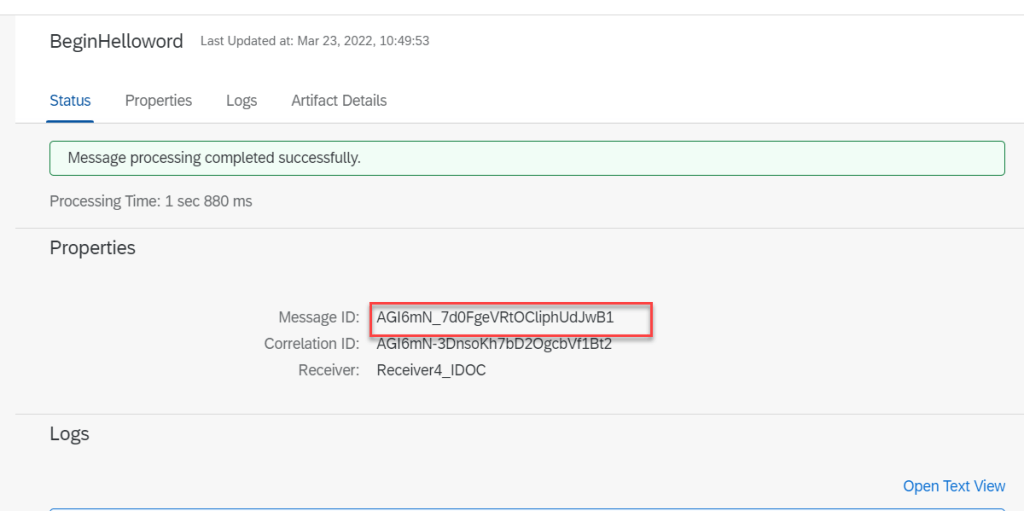

Check on LOG of CPI


In this article, I discuss about scenario how to send data IDOC xml from third party system to SAP ERP through SAP Cloud Connector. This scenario use for in cases integration between SAP ERP backend and third party with SAP CPI and SAP Cloud Connector. Thanks for your reading and any question, kindly leave your comment on below this.



One comment

  1. Hi Joseph,

    When i call IDOC from CPI to SAP, the status is 64 – IDoc ready to be passed to application.
    I have to Execute again in BD20 and the status will changed to 53.
    I have set up Trigger Immediately in WE20 and there is no dump occured.
    do you know how to solve this problem?
