[SAP S/4 HANA CLOUD] – HOW TO SEND DATA FROM S/4HANA CLOUD TO EXTERNAL BY OUTPUT TYPE

Hi guys, in previous turtorial I shared step by step How to send data from S/4HANA Cloud to external system by using DRF – Data Replication Framework. Next, in this tutorial, I will share step by step send data to external system by using output type. For simple I will use PURCHASE ORDER business object to demo

EXPLORING API RELEVANT TO PURCHASE ORDER BUSINESS OBJECT

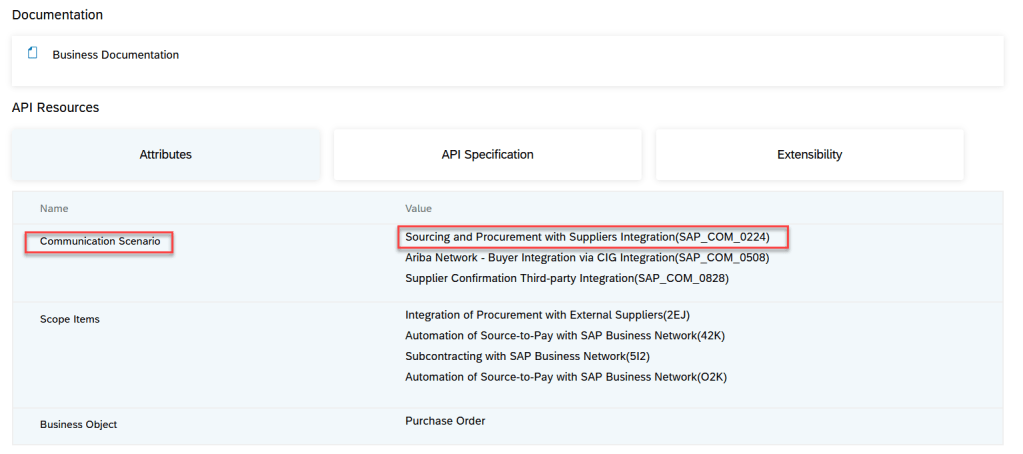

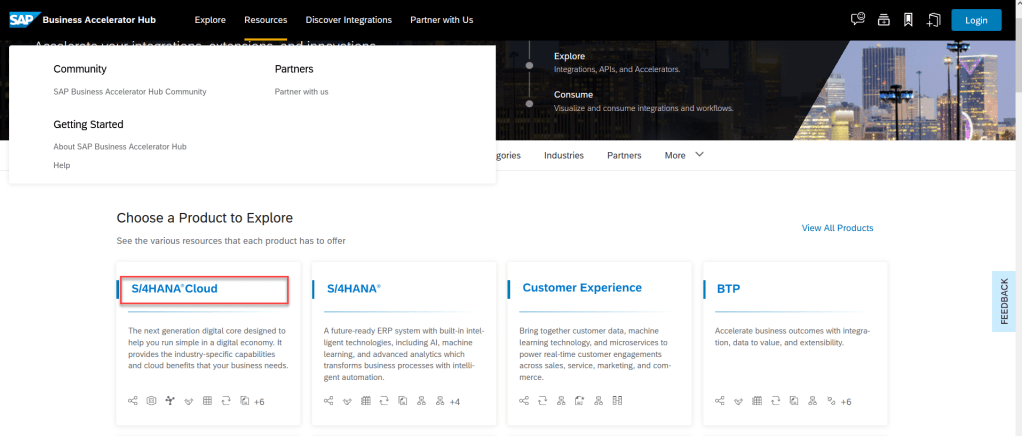

Go to SAP API hub

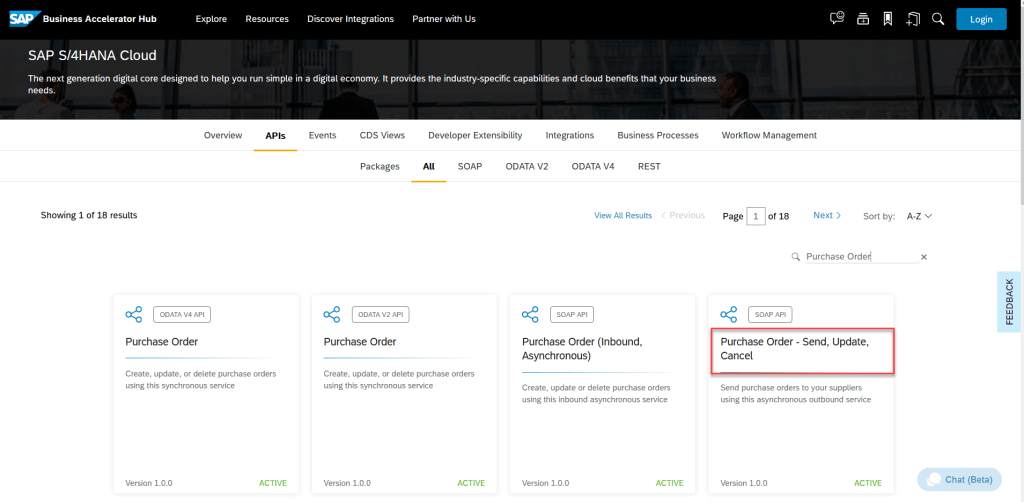

Select corresponding communication scenario for your integrated. In this, I select SAP_COM_0224

CONFIGURATION INTEGRATED ON S4HC

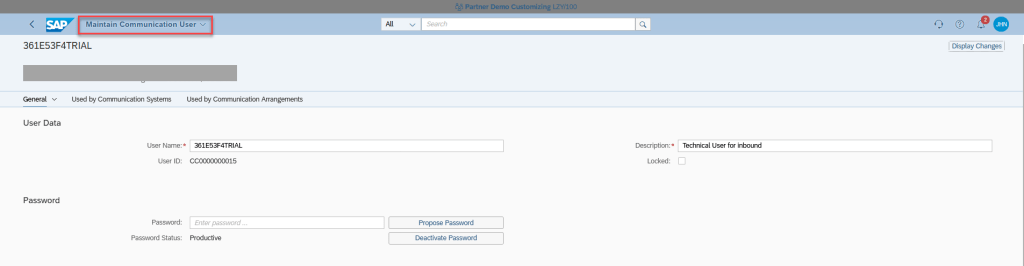

STEP 01 – COMMUNICATION USER

This is user which is used for communicate between systems. Every external system we should be create every user communication.

With INBOUND user we will create on S4HC

With OUTBOUND user we will create on external system and use in S4HC for OUTBOUND service

STEP 02 – COMMUNICATION SYSTEM

In integrated strategies, we will many external system. Ex: POS, CPI, WMS..etc..With every external system, we have to create on S4HC.

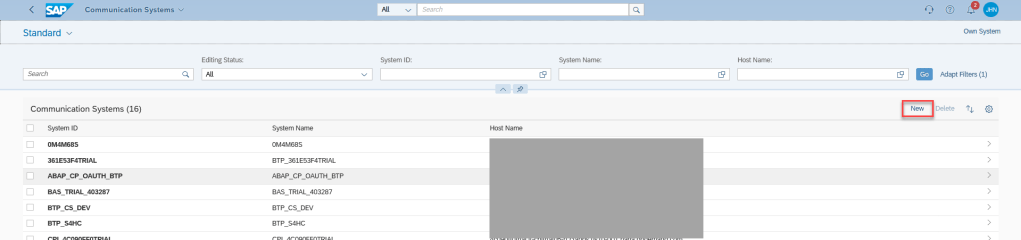

We will use COMMUNICATION SYSTEM app to do this

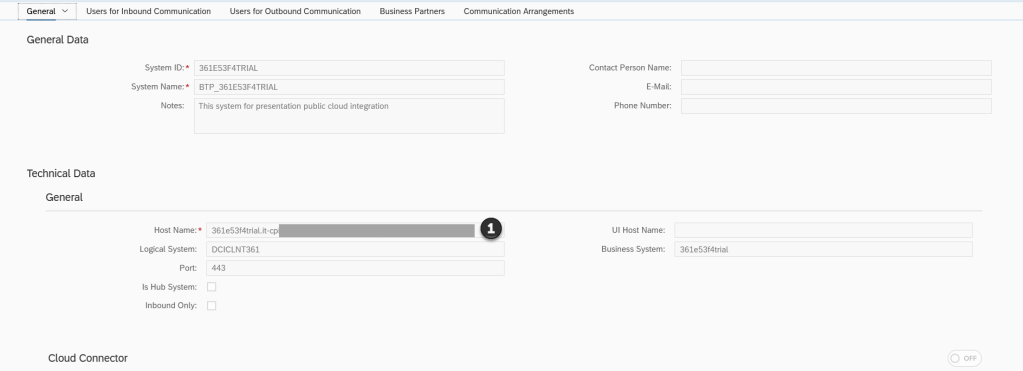

(1) – Host name of external system. If we use SAP CPI as external system then this is host name of CPI when we deploy IFLOW.

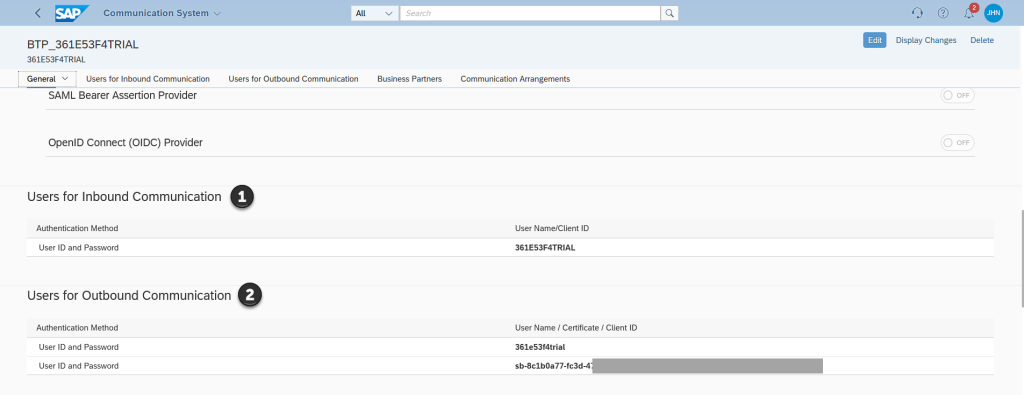

(1) – User inbound which we create in step 01

(2) – In this we use SAP CPI to receive data from S4HC, so this user is Client ID, Client Secret in service key of IFLOW

STEP 03 – COMMUNICATION ARRANGEMENT

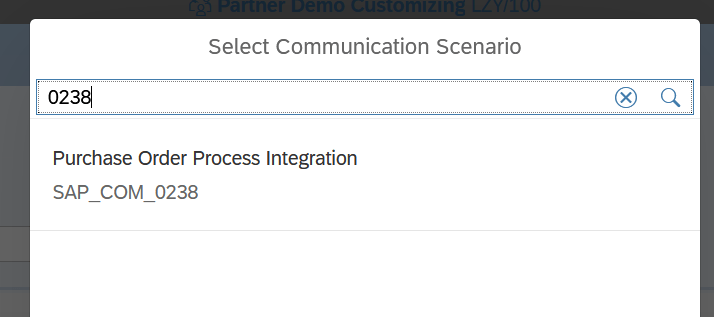

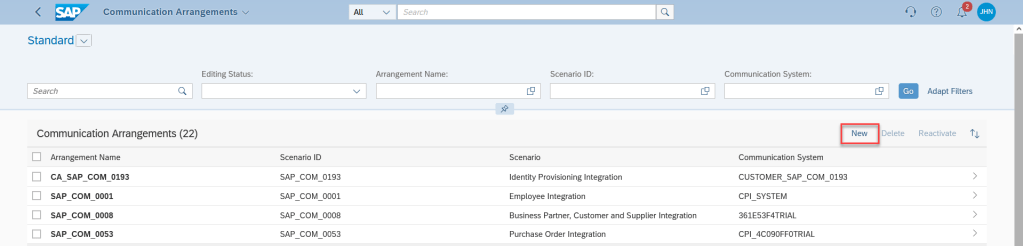

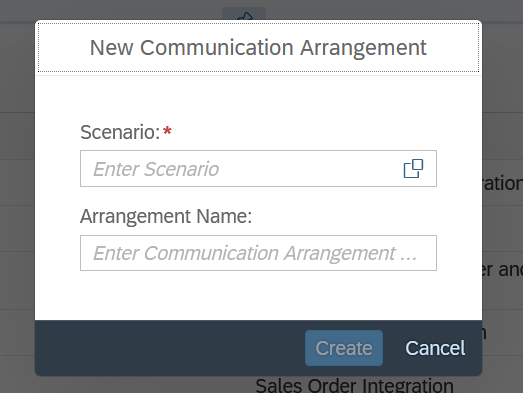

After select communication scenario on API hub, we will use COMMUNICATION ARRANGEMENTS app to create scenario.

NOTE

If you can not find scenario in this, check scope item actived by SAP or not.

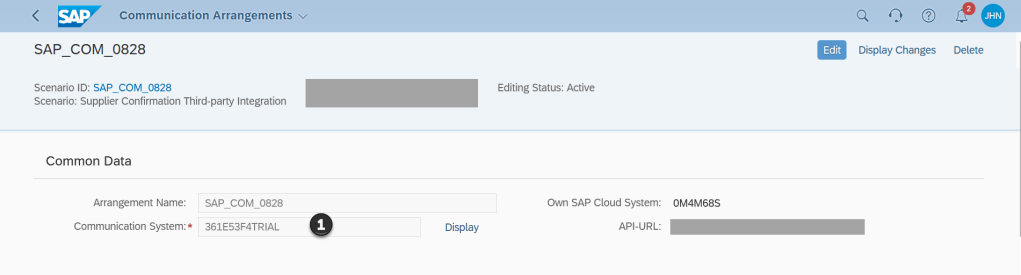

(1) – Select SYSTEM which integrated with S4HC in this scenario.

When you select SYSTEM, user INBOUND and OUTBOUND will fill automatically.

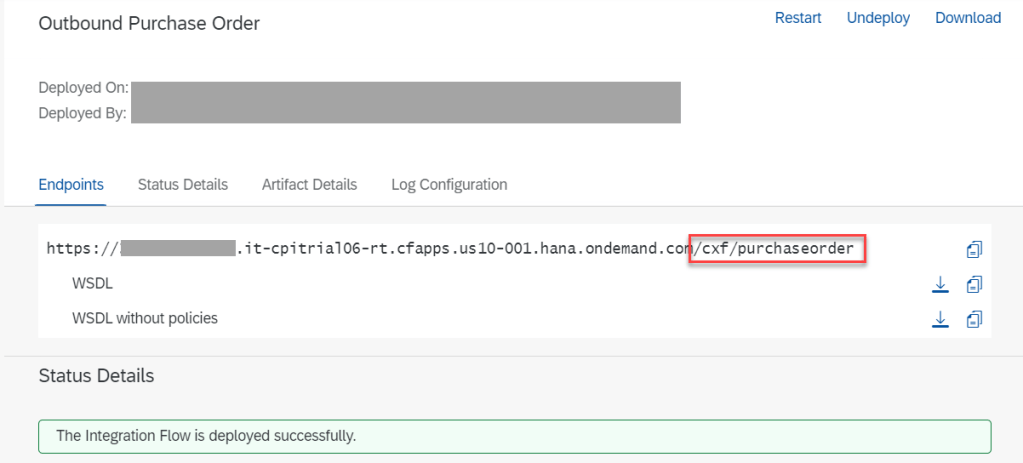

(1) – Input path. This path we will get in SAP CPI after deploy IFLOW.

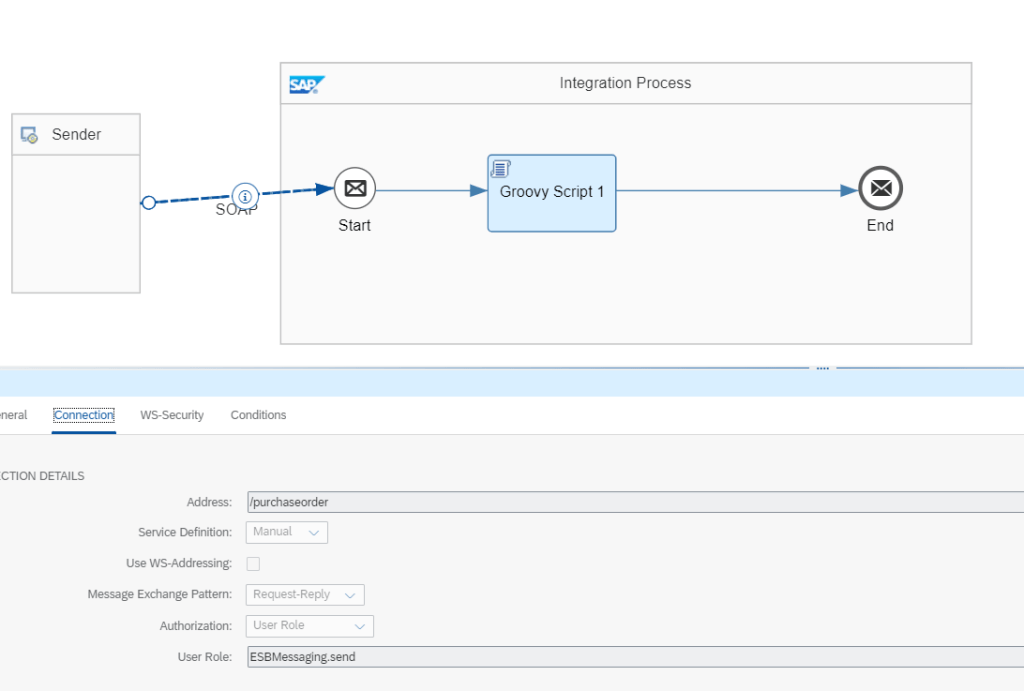

Because of we select method SOAP so we need HOST & RESOURCE SOAP of external system. In this we use SAP CPI so IFLOW will like this

STEP 04 – CONFIGURATION OUTPUT TYPE

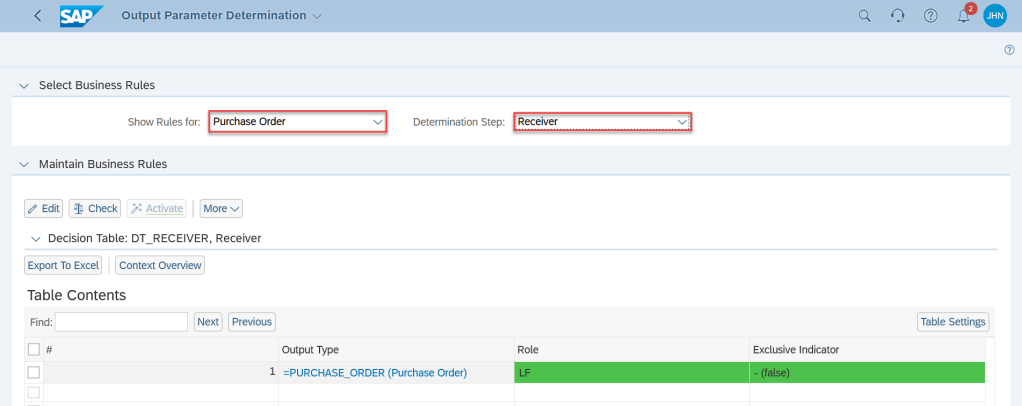

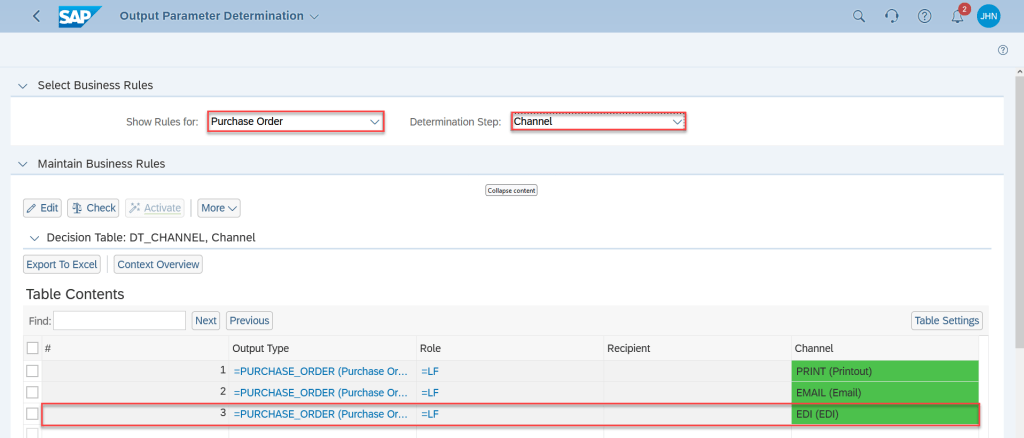

Next, we will configure output type by using OUTPUT PARAMETER DETERMINATION app.

With this configure, we just focus into OUTPUT TYPE, RECEIVER, CHANNEL

(1) – Rule for PURCHASE ORDER

(2) – Step OUTPUT TYPE

(3) – We just send all purchase order with DOCUMENT TYPE is NB

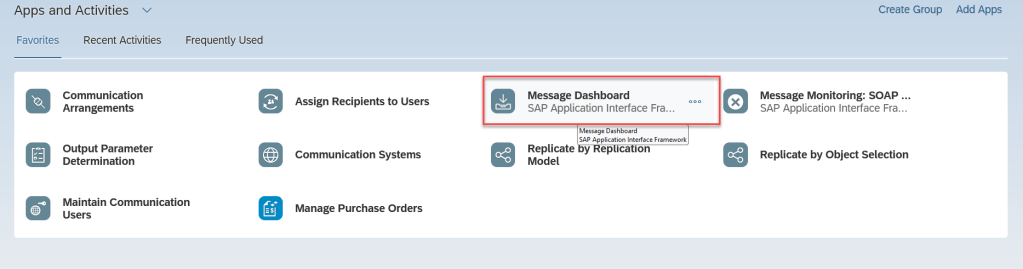

STEP 05 – CONFIGURATION MESSAGE DASHBOARD

In integrated scenario, we need to monitor all message which sent from S4HC, so we have to configure to do this by using message dashboard.

First we need add namespace for user by using ASSIGN RECIPIENTS TO USERS app

UNIT TEST AND MONITORING

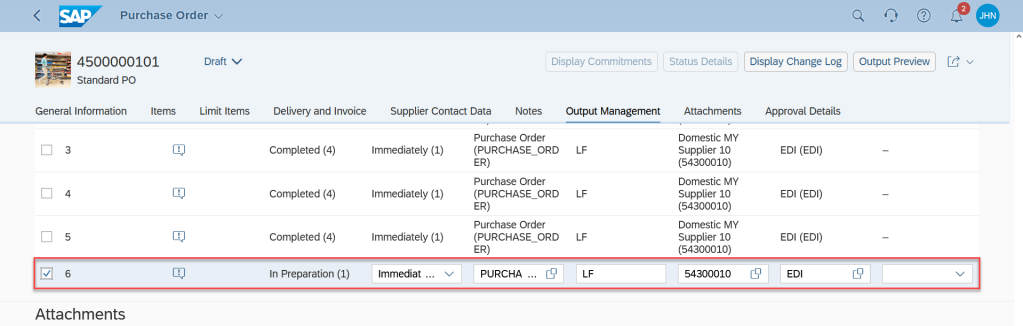

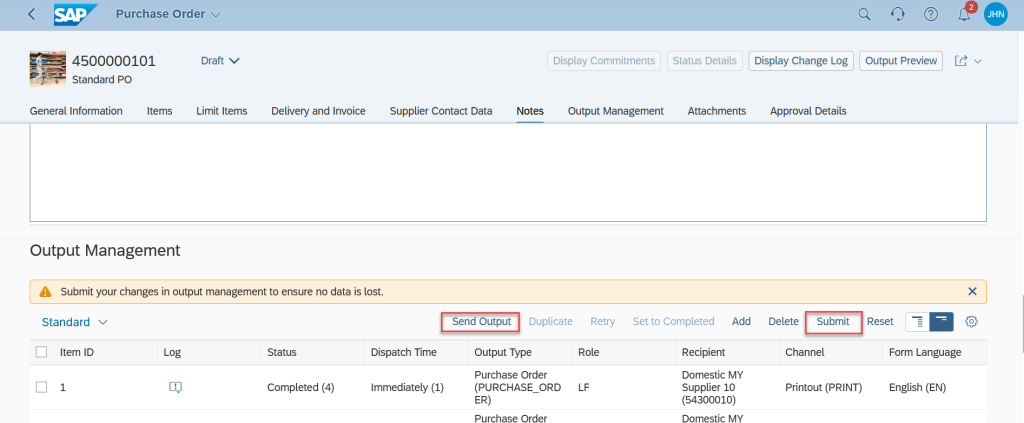

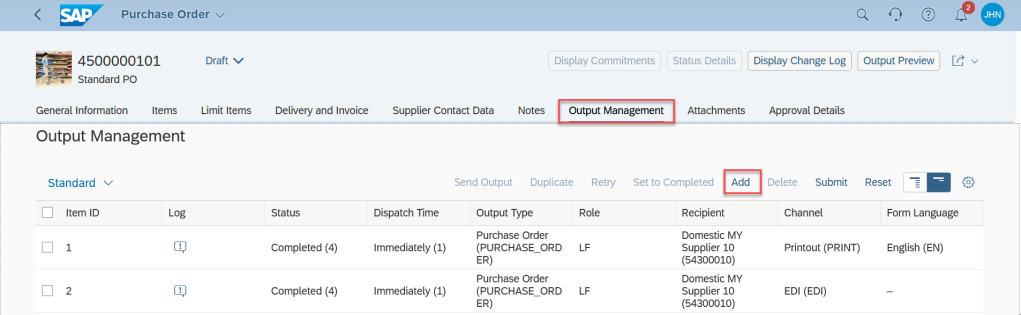

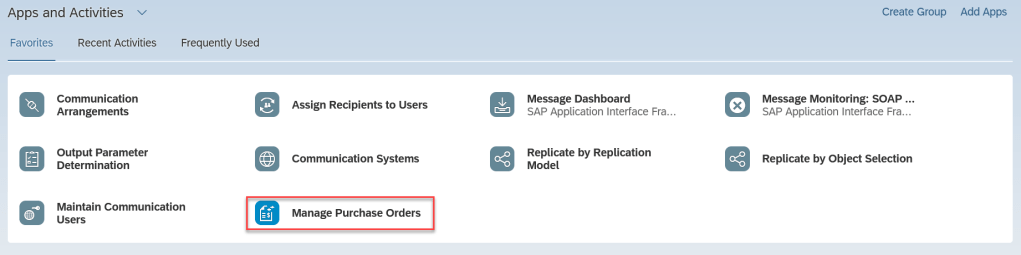

We will send purchase order to external system by using MANAGE PURCHASE ORDERS app

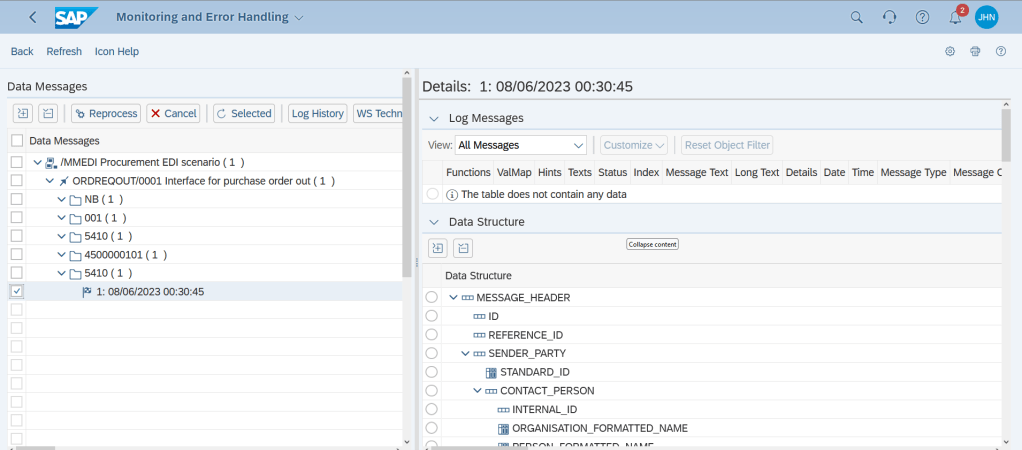

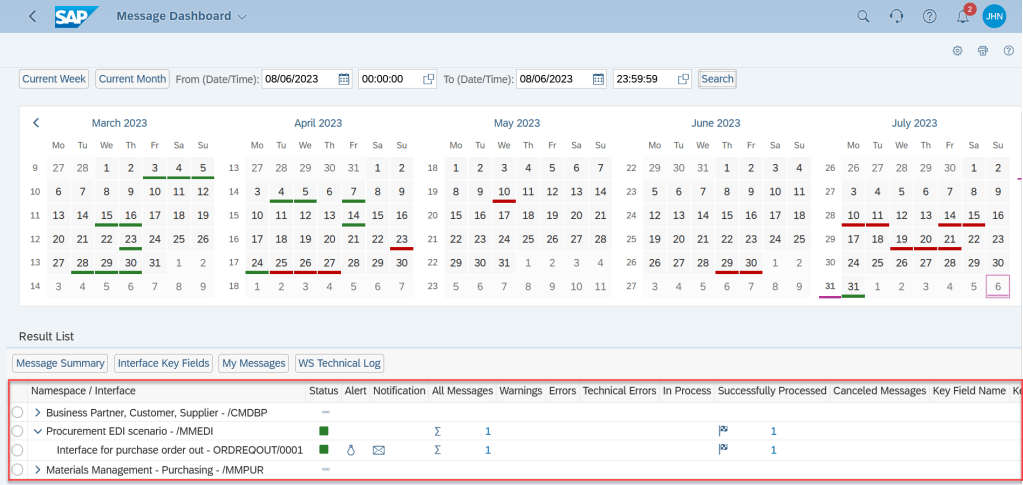

We will monitoring message by using MESSAGE DASHBOARD app

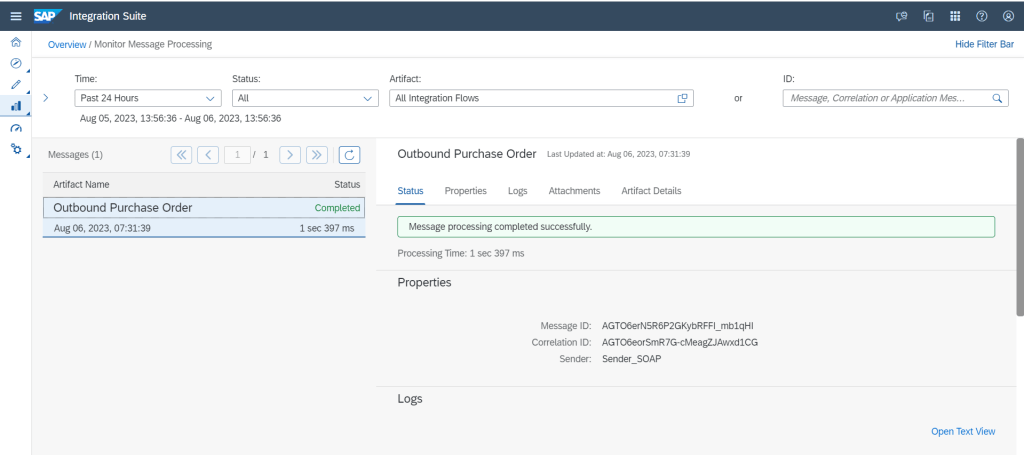

Monitoring on receiver system – SAP CPI

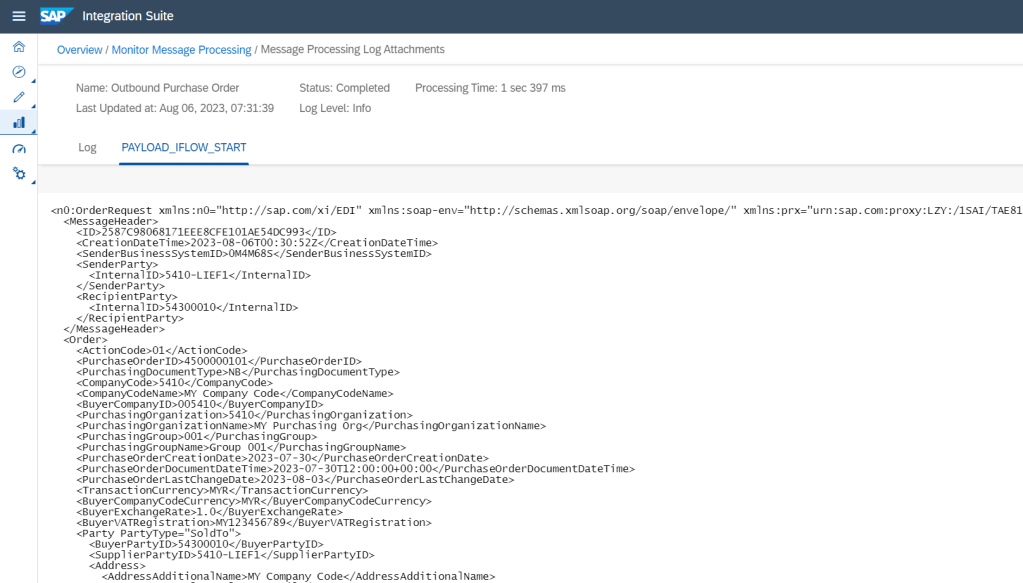

Payload

SUMMARY

OK, this is second article about integrated with S/4HAHA cloud public edition. In next article I will share about inbound service, send data from external system to S4HC. Happy to share my understand with all of you and more happy when receiver advices from you. Thanks for your reading and any advice kindly leave your comment on this.

Thanks

JOSEPH
