[SAP PI] – CREATE SHORTCUT FOR CONFIGURE ESR AND INTEGRATION DIRECTORY

Hi everybody,

The first post, I want to share my tip when configure mapping in ESR or configure in integration directory (ID). Everytime, you want to configure ESR or ID, you have to go web browser and input URL look like :

In fact, you have to do this work many times, it’ll take you loss time. So, in this post, I want to share one tip so cool. You just download package only one and it ‘ll run without web browser. you can follow step by step for this tip

Part 1 : Create shortcut for Enterprise Services Repository (ESR)

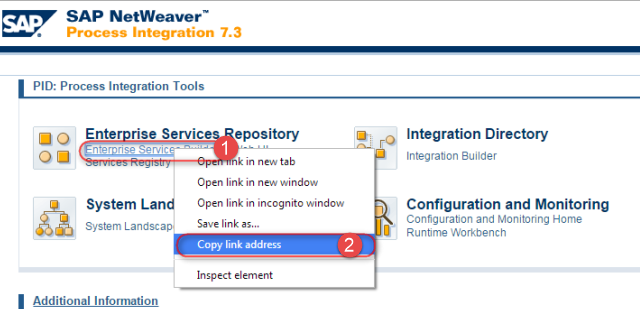

Step 1 : Copy link address of ESR

Step 2 : Go to mapping screen and test tab. You have to go here one time to download file

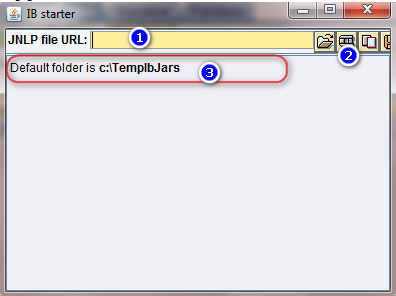

Press Ctrl +Alt + Shift + J. You’ll see the screen for download package.

(1) : You paste URL which you copied before

(2) : Start download by press run repository. It’ll start download package.

After download success, you’ll find a folder in path look like :

Step 3 : Copy file javaws from Java folder which you installed before into this folder

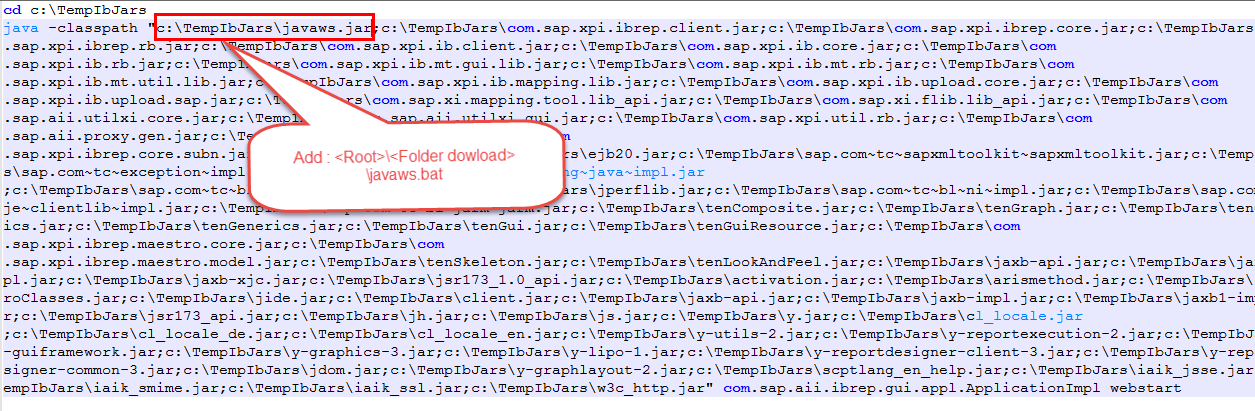

Step 4 : Edit file start.bat in notepad++. Add path of file javaws.bat into file as below

Step 5 : Rename file start.bat to ESR.bat, and run it. Congratulation, you create shortcut successfully. Now, you can configure ESR by run file *.bat without use web browser to download packages.

Part 2 : Create shortcut for Integration Directory (ID)

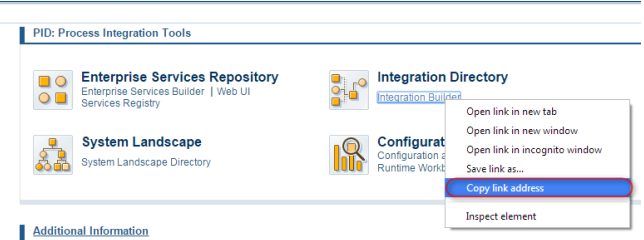

Step 1 : Copy link address of ID

Step 2 : Go to mapping screen and test tab. You have to go here one time to download file

Press Ctrl +Alt + Shift + J. You’ll see the screen for download package.

(1) : You paste URL which you copied before

(2) : Start download by press run repository. It’ll start download package.

After download success, you’ll find a folder in path look like :

Step 3 : Copy file javaws from Java folder which you installed before into this folder

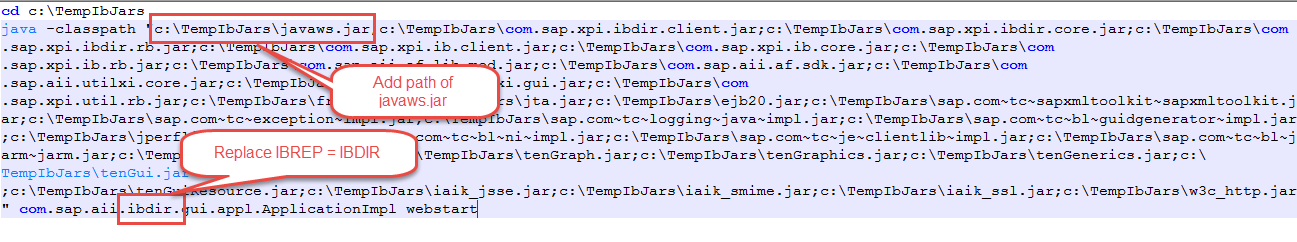

Step 4 : Edit file start.bat in notepad++. Add path of file javaws.bat into file as below

Step 5 : Rename file start.bat to ID.bat, and run it. Congratulation, you create shortcut successfully. Now, you can configure ID by run file *.bat without use web browser to download packages.

Congratulation !! Current your work will so cool with this tip. You can create shortcut on every environment as DEV, QAS, PRD.

Thanks for your reading and I’m very happy if you share your comment on this post.

Huy Nguyen

4 comments

  1. I get 401 error when trying to download and it not User issue, I have already login 😛
    ==========================================================================

    java.io.IOException: Server returned HTTP response code: 401 for URL: https://.com/rep/start/sso/Repository.jsp
    at sun.net.www.protocol.http.HttpURLConnection.getInputStream0(Unknown Source)
    at sun.net.www.protocol.http.HttpURLConnection.access$200(Unknown Source)
    at sun.net.www.protocol.http.HttpURLConnection$9.run(Unknown Source)
    at sun.net.www.protocol.http.HttpURLConnection$9.run(Unknown Source)
    at java.security.AccessController.doPrivileged(Native Method)
    at java.security.AccessController.doPrivilegedWithCombiner(Unknown Source)
    at sun.net.www.protocol.http.HttpURLConnection.getInputStream(Unknown Source)
    at sun.net.www.protocol.https.HttpsURLConnectionImpl.getInputStream(Unknown Source)
    at java.net.URL.openStream(Unknown Source)
    at com.sap.aii.mappingtool.helpers.IBJnlpLoader.internalRun(IBJnlpLoader.java:105)
    at com.sap.aii.mappingtool.helpers.IBJnlpLoader.access$000(IBJnlpLoader.java:29)
    at com.sap.aii.mappingtool.helpers.IBJnlpLoader$1.run(IBJnlpLoader.java:57)
    ============================================================================

    Like
