SAP PO: inbound CSV to sap car | s/4hana abap proxy

Hi guys,

In this topic, i will show you step by step to send data from third party system to SAP CAR or SAP S/4 HANA by abap proxy.

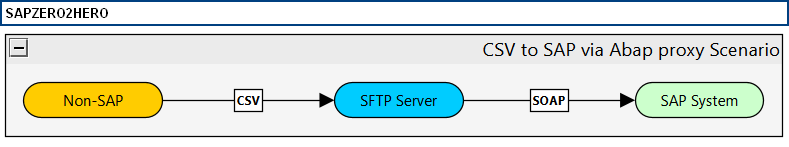

Data flow

STEP 1: CREATE INTEGRATION OBJECTS IN ESR (ENTERPRISE SERVICE REPOSITORY)

1 – Data type:

Source: DT_{NAME}_IN

Target: DT_{NAME}_OUT

2 – Message Type:

Source: MT_{NAME}_IN, assign data type: DT_{NAME}_IN

Target: MT_{NAME}_OUT, assign data type: DT_{NAME}_OUT

3 – Service Interface:

Source: SI_{NAME}_IN, assign message type: MT_{NAME}_IN, direction: Outbound

Target: SI_{NAME}_OUT, assign message type: MT_{NAME}_OUT, direction: Inbound

4 – Message Mapping:

Name: MM_{NAME}

Source Message Type: MT_{NAME}_IN

Target Message Type: MT_{NAME}_OUT

5 – Operation Mapping

Name: OM_{NAME}

Source Service Interface: SI_{NAME}_IN

Target Service Interface: SI_{NAME}_OUT

Message Mapping: MM_{NAME}

=>>>> {NAME} is your interface name

STEP 2: CREATE INTEGRATED CONFIGURATION OBJECTS IN IB (INTEGRATION BUILDER

1 – BUSINESS SYSTEM

Create business system for sender system

Create business system for SAP CAR | SAP S/4 HANA receiver system

Import new business systems to IB

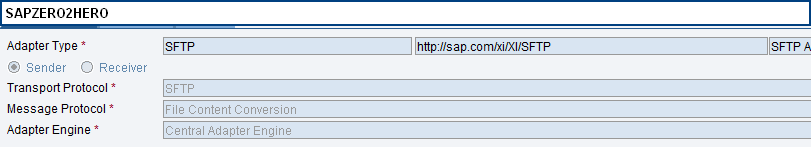

2 – SENDER COMMUNICATION CHANNEL

Create SFTP Sender communication channel.

Attribute NameAttribute Values
Transport ProtocolSFTP
Message ProtocolFile Content Conversion
Adapter EngineCentral Adapter Engine

Content Conversation for SFTP sender channel: https://help.sap.com/viewer/5336c62e683348a8886ff7ef4b15c40f/1.0.5/en-US/2e99f0fb5a9e45b3b148c90e87fafcd1.html

Attribute Name Attribute Values Remarks
Document NameMT_{NAME}_INSource message type name
Document Namespace{Namespaces}Source message type namespaces
Recordset NameRECORDSETSub-segment of source message type
Recordset StructureDATA,*Sub-segment of Recordset Name and all fields
DATA.fieldSeparator,Your CVS delimiter rule
DATA.fieldNamesAAA,BBB,CCCYour MT_{NAME}_IN fields name
DATA.ignoreRecordsetNameTRUEif you want ignore recordset name
DATA.endSeparator‘nl’
DATA.missingLastFieldsignore
DATA.additionalLastFields ignore

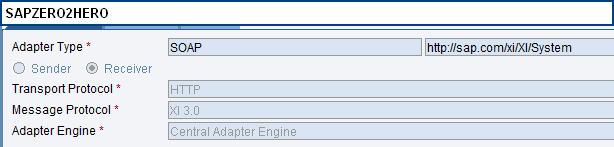

3 – RECEIVER COMMUNICATION CHANNEL

Attribute NameAttribute Values
Adapter TypeSOAP
Transport ProtocolHTTP
Message ProtocolXI 3.0
Adapter Engine Central Adapter Engine

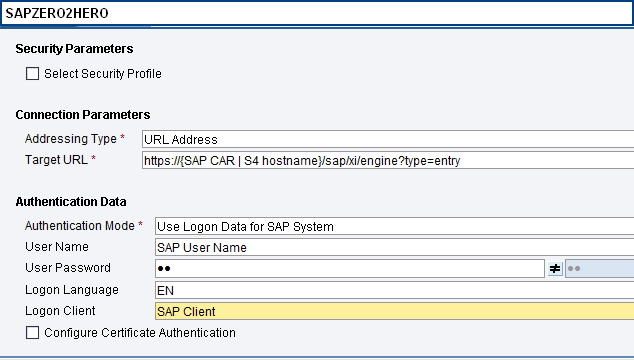

Attribute Name Attribute Values
Addressing Typehttps://{HOSTNAME}:{PORT}/sap/xi/engine?type=entry
User NameSAP User Name
PasswordSAP User’s password
Login LanguageEN
SAP ClientYour SAP client

STEP 3: IMPLEMENT AND CONSUME MESSAGE ON SAP

1 – SETUP HTTP CONNECTION IN SAP

Refer to this document https://sapzero2hero.com/2019/10/22/sap-po-abap-proxy-configuration-step-by-step/

2 – IMPLEMENT ABAP CODE TO USE DATA

Tcode: sproxy

STEP 4: CHECK INCOMING MESSAGES

TCode: SXMB_MONI

Thank you and hope can help you when develop integration scenarios easier.

Cuong Dang
