[SAP PO]-Abap proxy configuration step by step

Hi guys,

When you do integration with SAP ERP or SAP CAR etc.. via SAP Abap proxy, we need perform steps as below.

1. Create technical user on SAP PO in NWA

With roles:

2. SLD Display data configuration

On SAP ERP, run TCode: sldapicust

Run TCode : SLDCHECK

3. Create HTTP RFC

Connection Type: H (HTTP Connection to External Server)

Path Prefix: /XISOAPAdapter/MessageServlet?ximessage=true

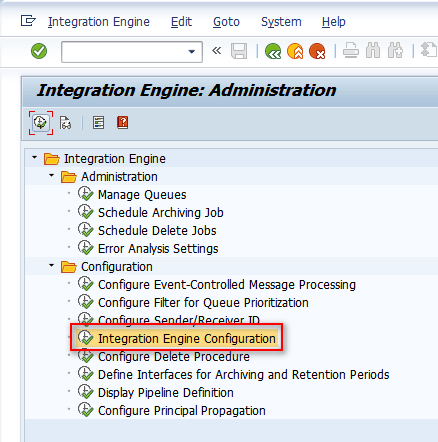

4. Integration Engine Configuration

TCode: SXMB_ADM

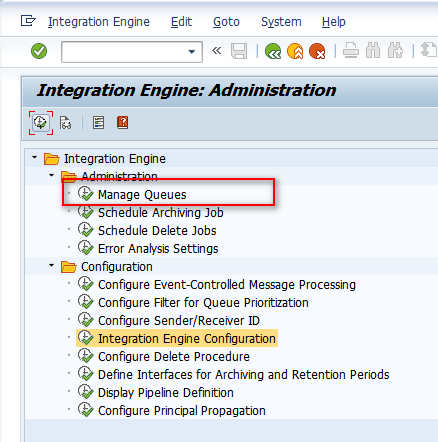

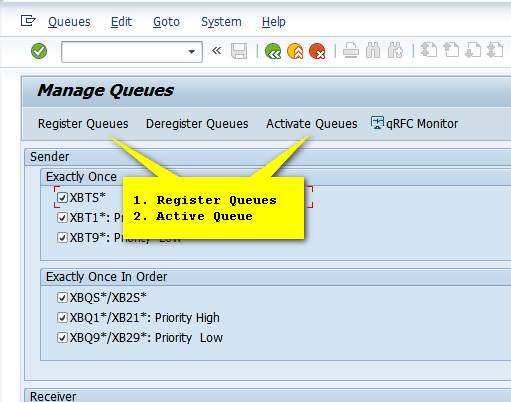

5. Register and Active Queues

TCode: SXMB_ADM

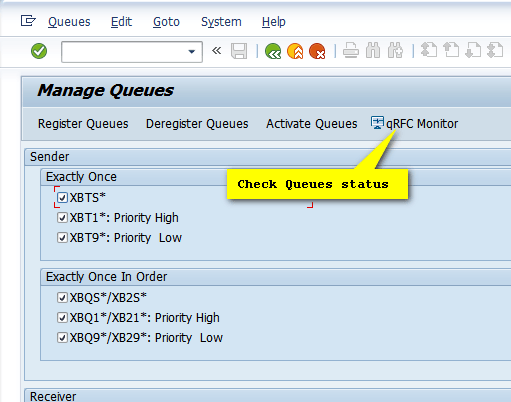

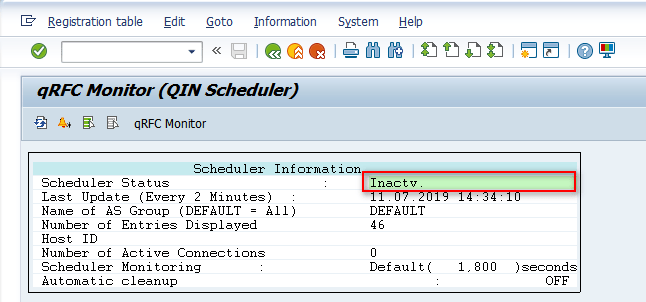

Check Queues

6. Abap proxy message monitoring

TCode: SXMB_MONI

Thank you and hope useful for you guys.

Cuong Dang
