Publish webservice on SAP PO – Part 1

Hi everyone,

This blog will show you step by step how to publish a synchronous webservice for call function in SAP ERP through SAP PO from other system.

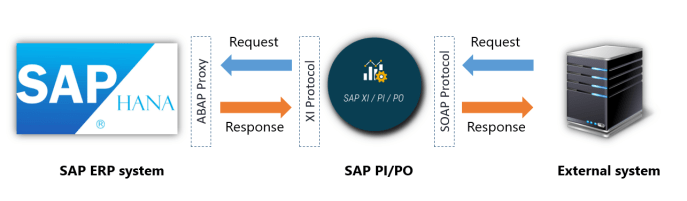

Scenario:

On legacy system need to check master data of materials, so need to create a interface to get data from SAP ERP, Parameter input is material number and get reponse detail such as name, unit, sale price unit.

Step 1: Config on ESR

2019-06-18_23h35_24

add new folder for objects

2019-06-18_23h41_37

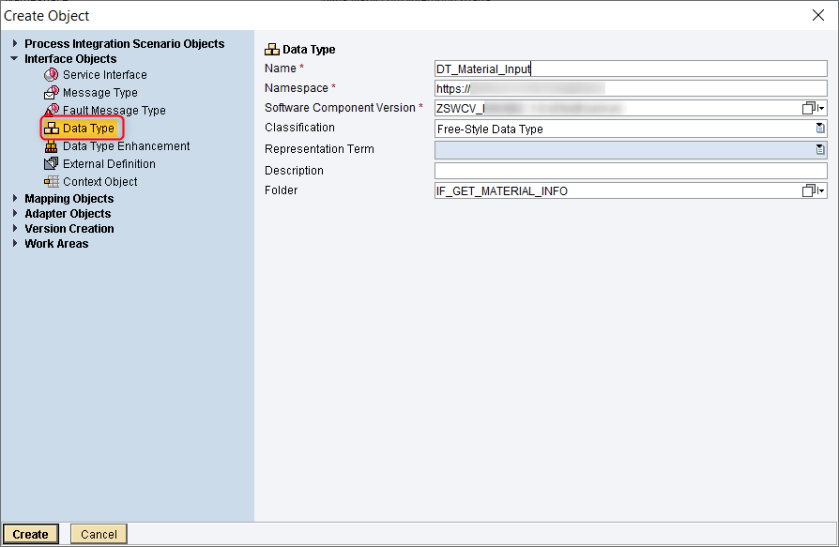

Create data type for input

In this case, i created data type as a list for input more than one material number

2019-06-18_23h45_31

2019-06-18_23h58_17

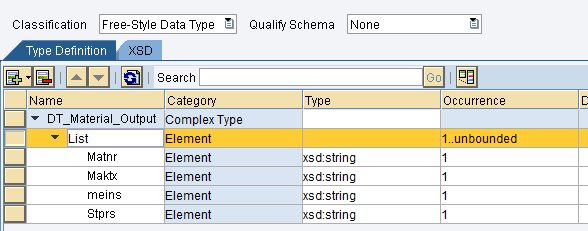

Create datatype for output

2019-06-18_23h51_01

2019-06-18_23h57_33

Create MessageType for datatypes

For input message

2019-06-19_00h00_06

2019-06-19_00h01_12

For output message

2019-06-19_00h03_34

2019-06-19_00h04_23

Create message mapping for sender and receiver of input flow

2019-06-19_00h07_33

Create Message mapping for sender and receiver of output flow

2019-06-19_00h10_46

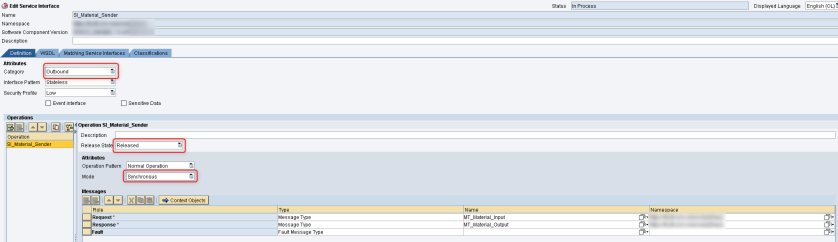

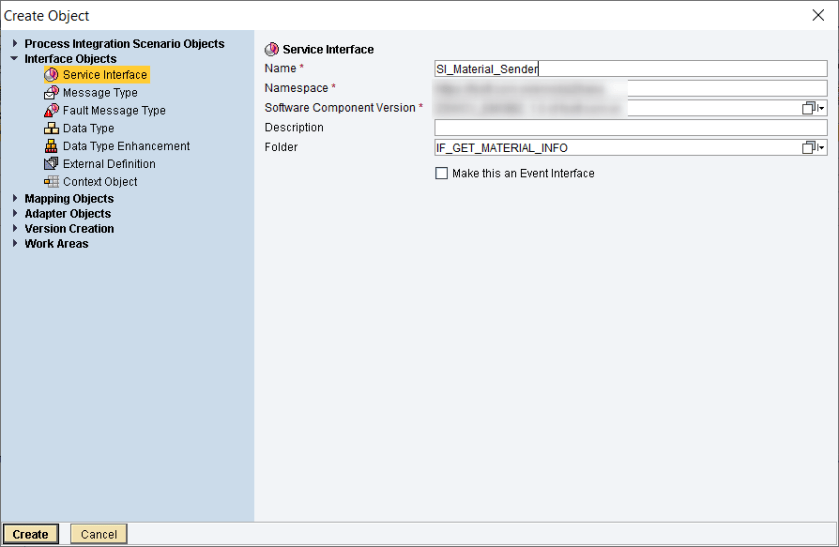

Create Service Interface Sender

2019-06-19_00h11_56

2019-06-19_00h13_56

Create Service Interface Receiver

2019-06-19_00h15_41

2019-06-19_00h17_02

Create Operation Mapping

2019-06-19_00h18_25

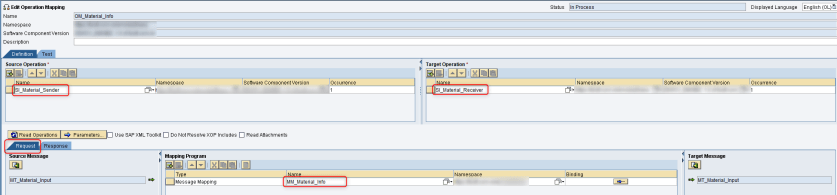

For flow request

2019-06-19_00h20_09

For flow response

2019-06-19_00h21_30

After config objects in ESR, we will have list objects

2019-06-19_00h24_38

In part 2 of this series, I will show you how to config coding on SAP based on objects which were configured on ESR.

Thank you!
