Hi guys, in this article I want to share a tutorial How to federated content S/4 HANA ON PREMISE WITH SAP WORKZONE IN BTP.
In SAP S/4 HANA we have many Fiori App which called Catalog. We will choose these app and configure expose for end user.
In this article I will get Fiori App Manage Purchase Order for demo.
Catalog ID = SAP_PRC_BC_PURCHASER_PO
PREREQUISITES
To finish this tutorial, we need
- BTP Trial account
- SAP Cloud Connector
- SAP S/4 HANA On-Premise
- Account technical connect on S/4 HANA to configure destination on BTP
- Account S/4 HANA Administrator to configure expose content app fiori of S/4 HANA.
CREATE CUSTOM CATALOG AND GROUP IN FIORI

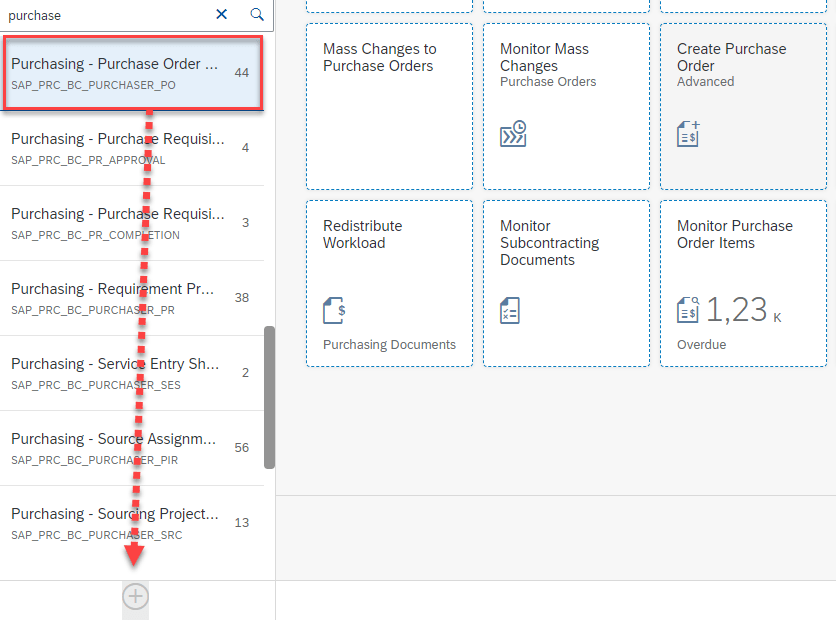

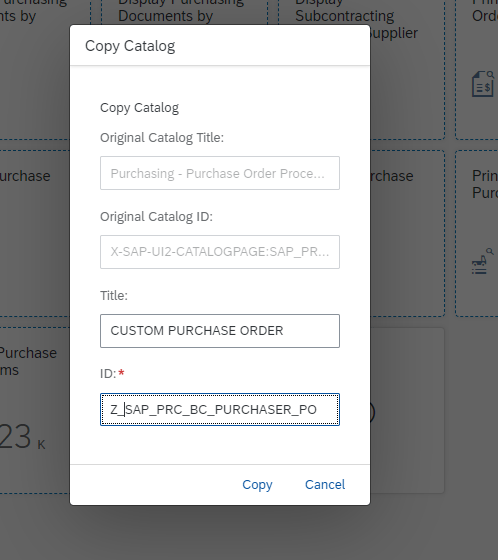

CREATE CUSTOM CATALOG

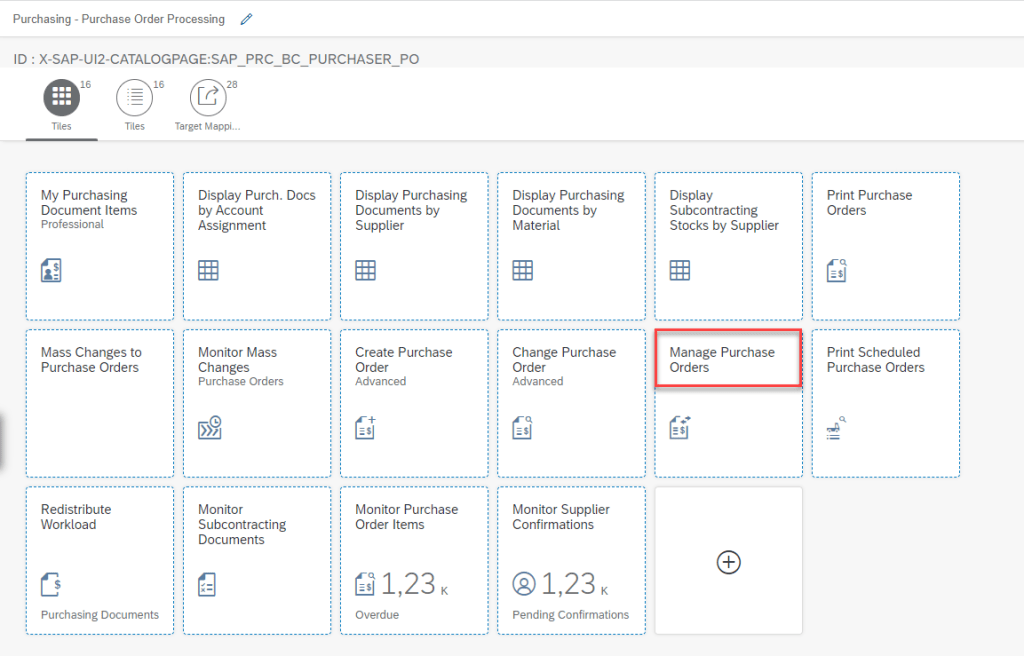

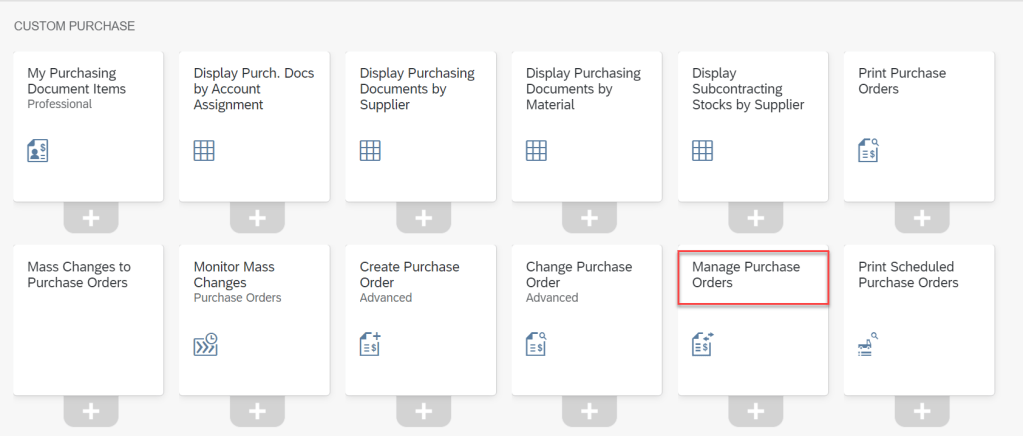

Login Fiori Design and search catalogue with ID = SAP_PRC_BC_PURCHASER_PO

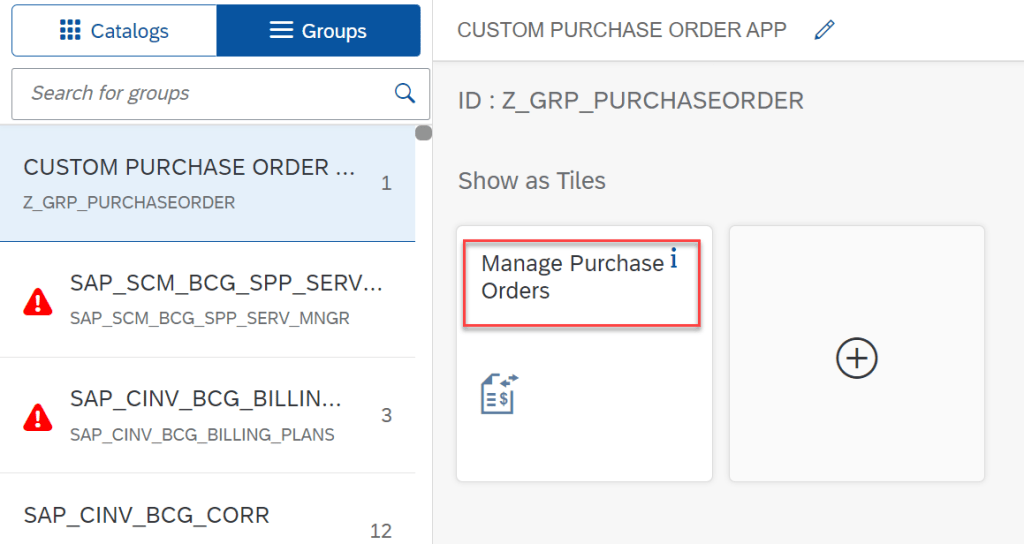

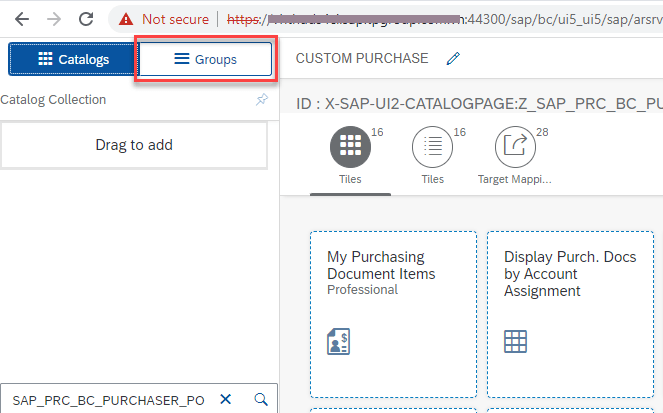

CREATE CUSTOM GROUP
Login Fiori design portal. This portal, ask basis guys for portal configure FIORI APP.
CREATE USER ON S/4 HANA
Login S/4 HANA
T-Code: SU01
CONFIGURE ROLE – ASSIGN USER INTO ROLE IN S/4 HANA (PFCG)
Login S/4 HANA
T-Code : PFCG
Create new Single Role. Ex: ZBTP_WORKZONE

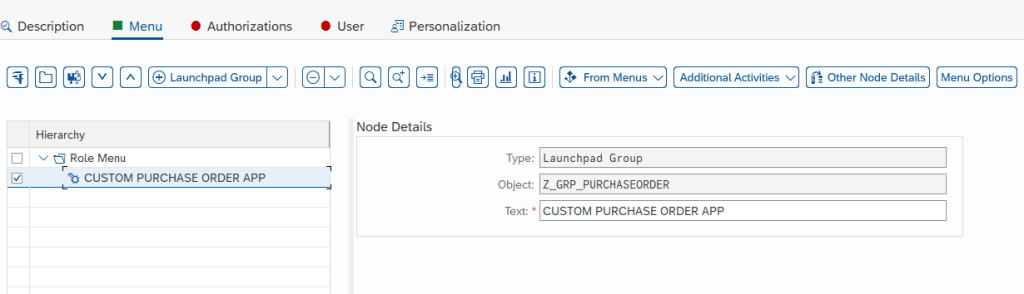

Input custom group which created on FIORI DESIGNER

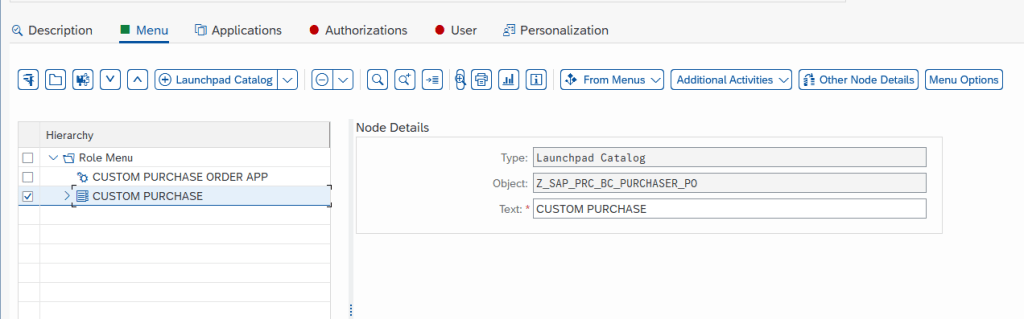

Add custom catalog on SAP FIORI DESIGNER
CHECK ON FIORI USER
OK, next step we will expose this Manage Purchase Order Fiori App into BTP.
CONFIGURE ON S/4 HANA ON PREMISE
Login S/4 HANA

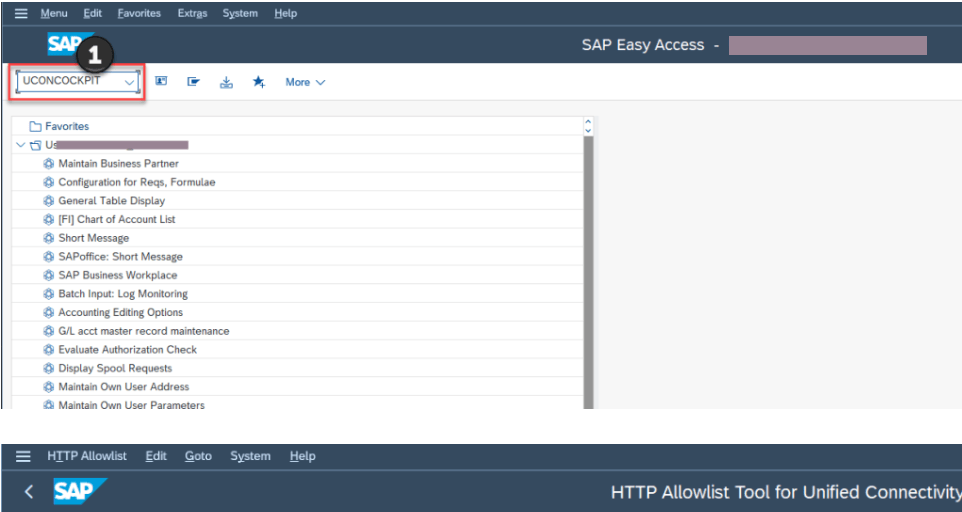

T-Code: UCONCOCKPIT
Active service CDM3
T-Code: SICF

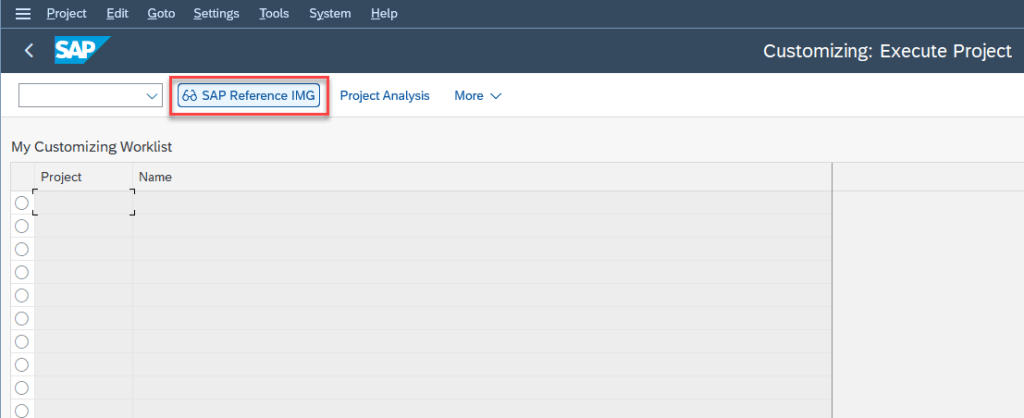

T-Code: SPRO
New Entries : EXPOSURE_SYSTEM_ALIASES_MODE

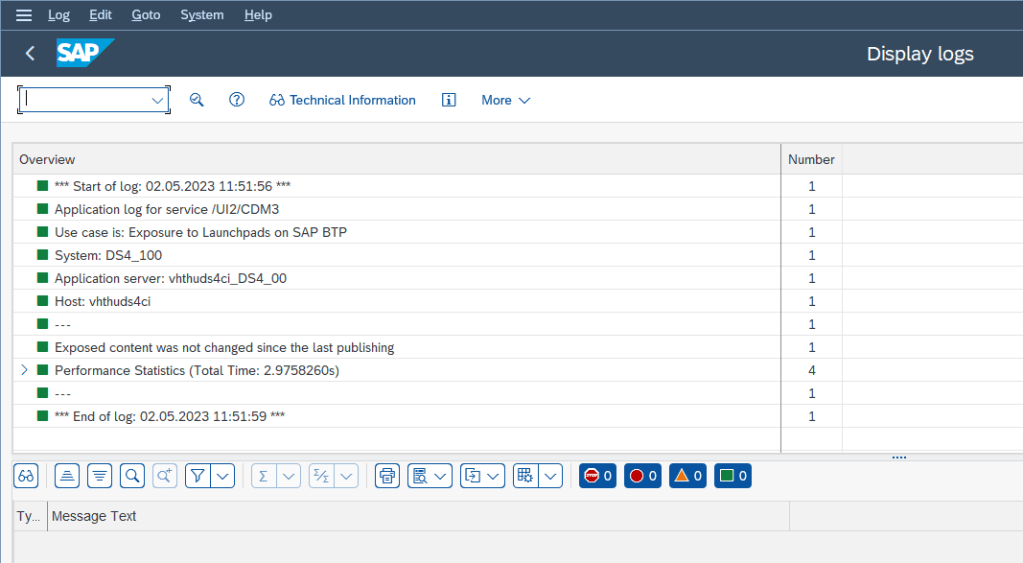

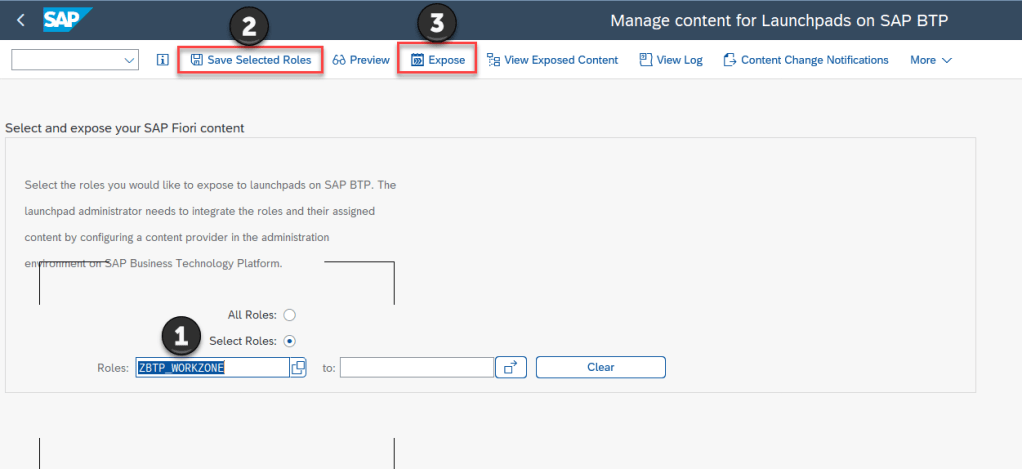

T-Code: /n/UI2/CDM3_EXP_SCOPE
CONFIGURATION ON SAP CLOUD CONNECTOR
For configure SAP Cloud Connector, kindly reference another tutorial in this blog. In this step We will create new host connect to S/4 HANA On premise.
Similar configure host for IDOC inbound from External to S/4 HANA
CONFIGURATION ON SAP BTP TRIAL ACCOUNT

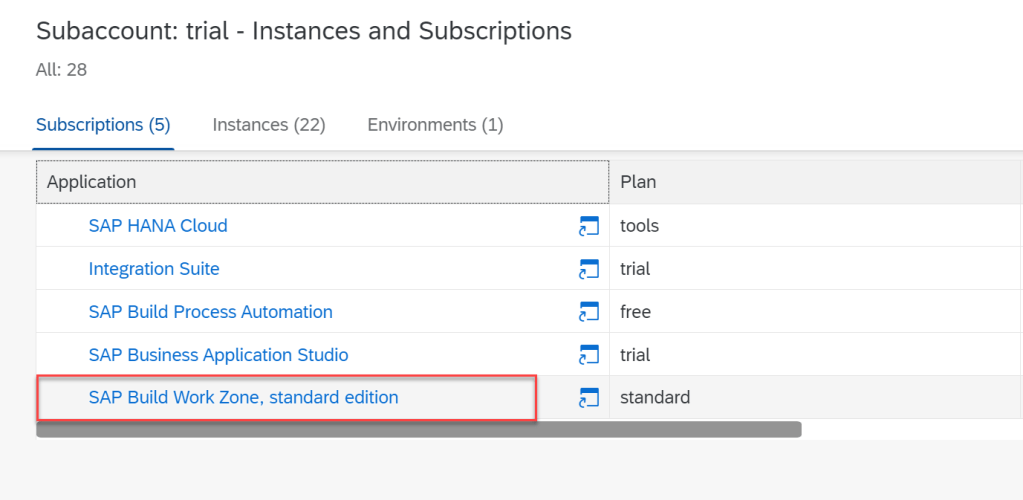

SUBSCRIPTION SAP BUILD WORKZONE STANDARD EDITION

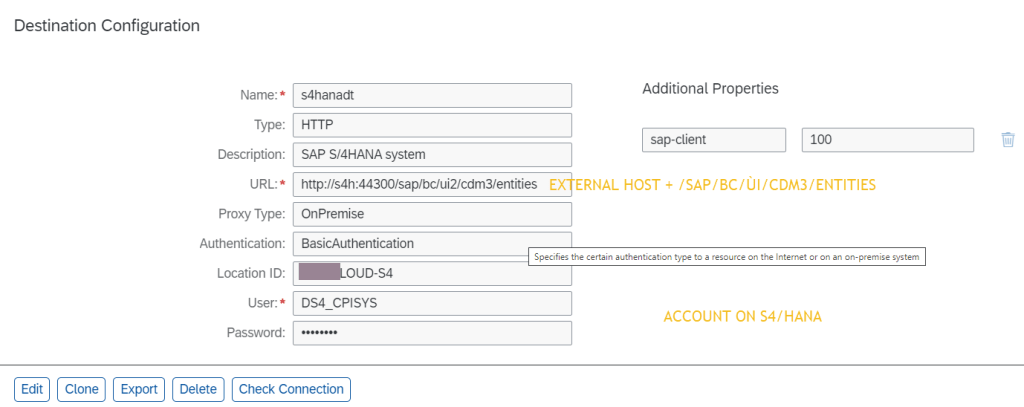

CREATE BTP DESTINATION DESIGN TIME
CREATE BTP DESTINATION RUN TIME
CONFIGURATION ON SAP BUILD WORK ZONE

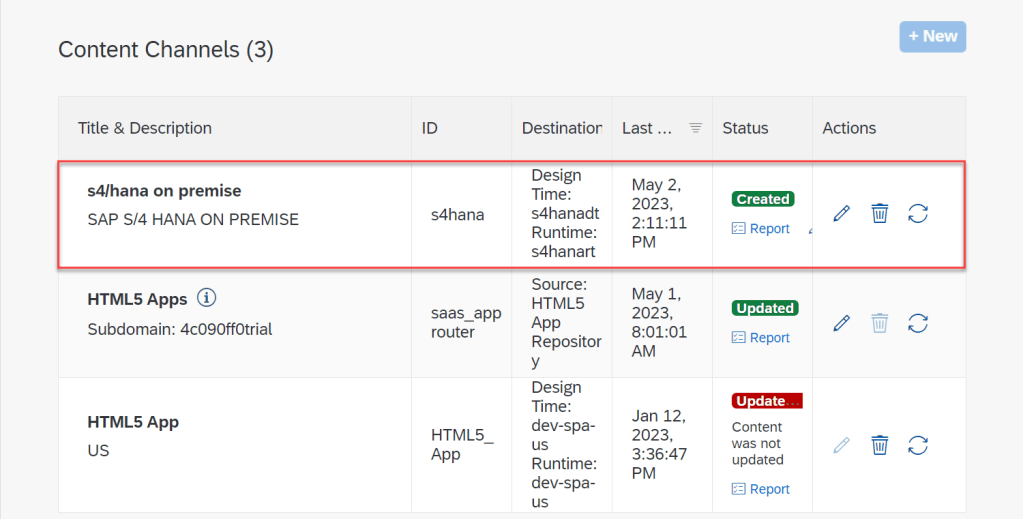

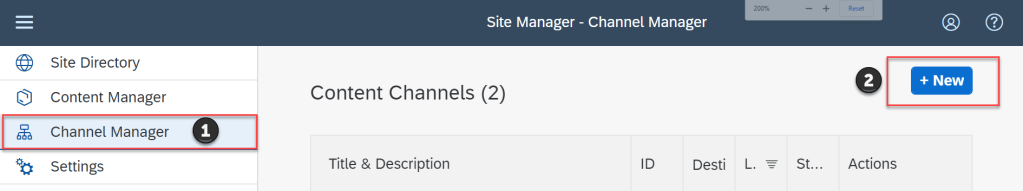

CREATE CHANNEL MANAGER

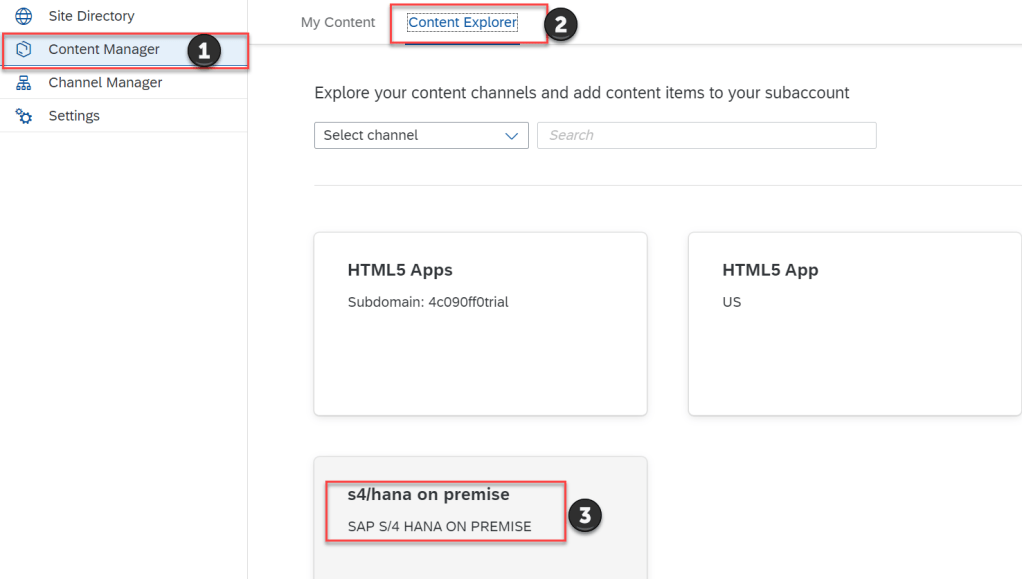

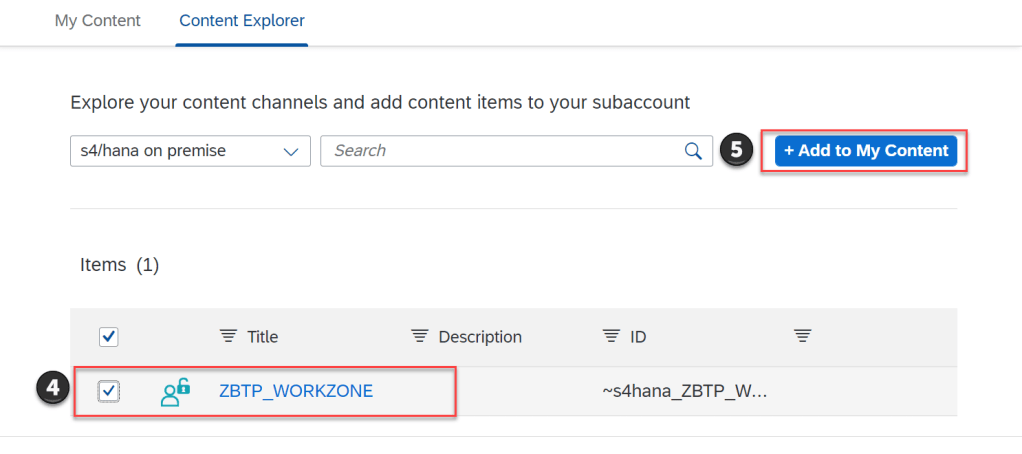

GET CONTENT FROM CHANNEL

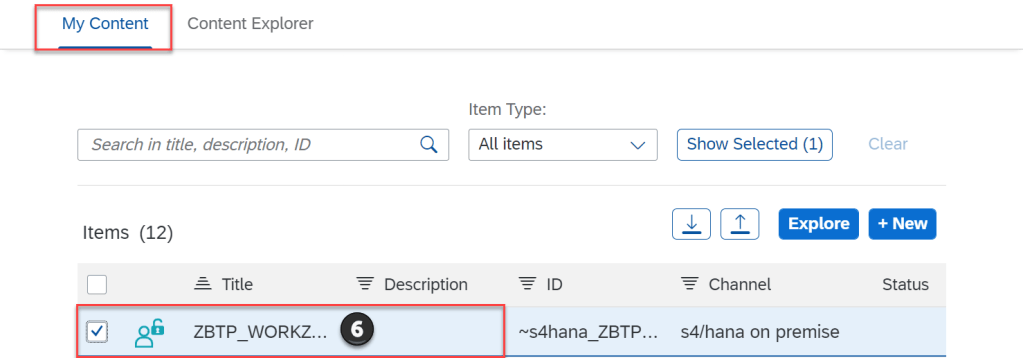

ADD CONTENT INTO SITE

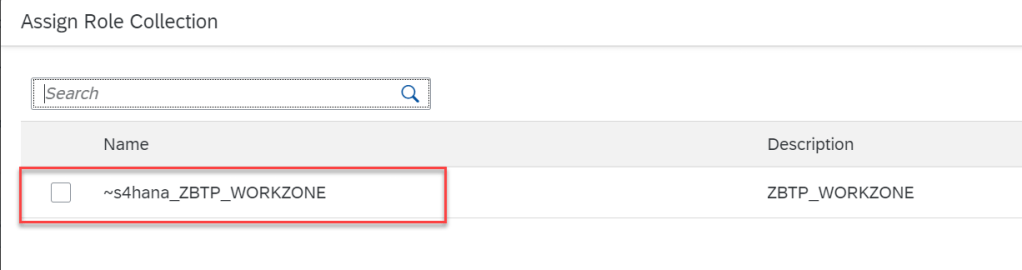

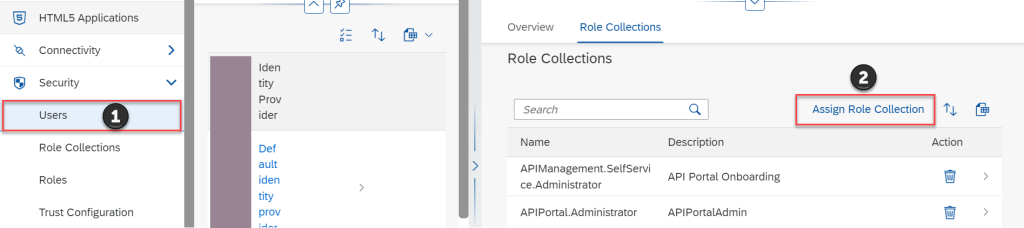

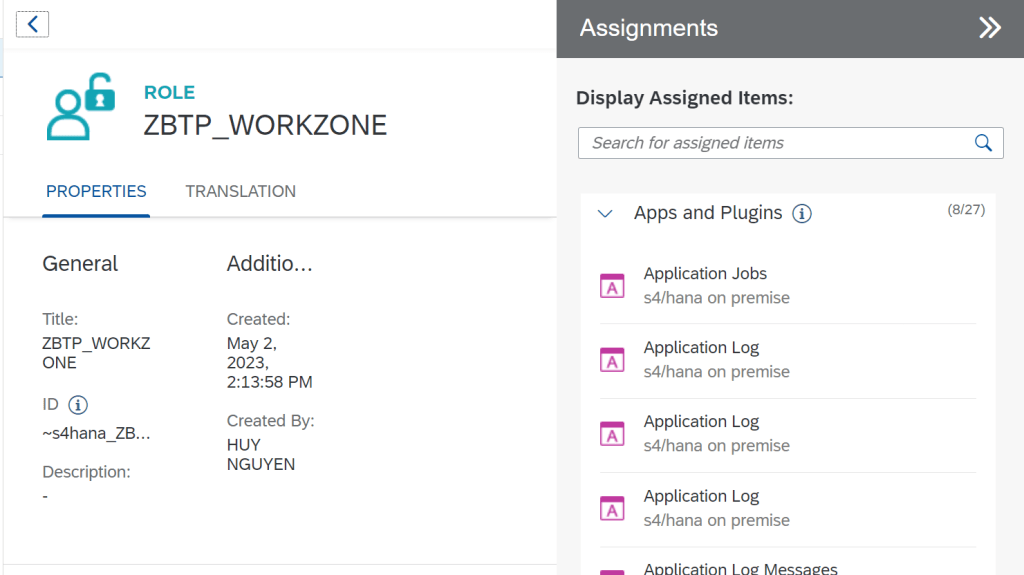

ASSIGN ROLE COLLECTION FOR USER BTP

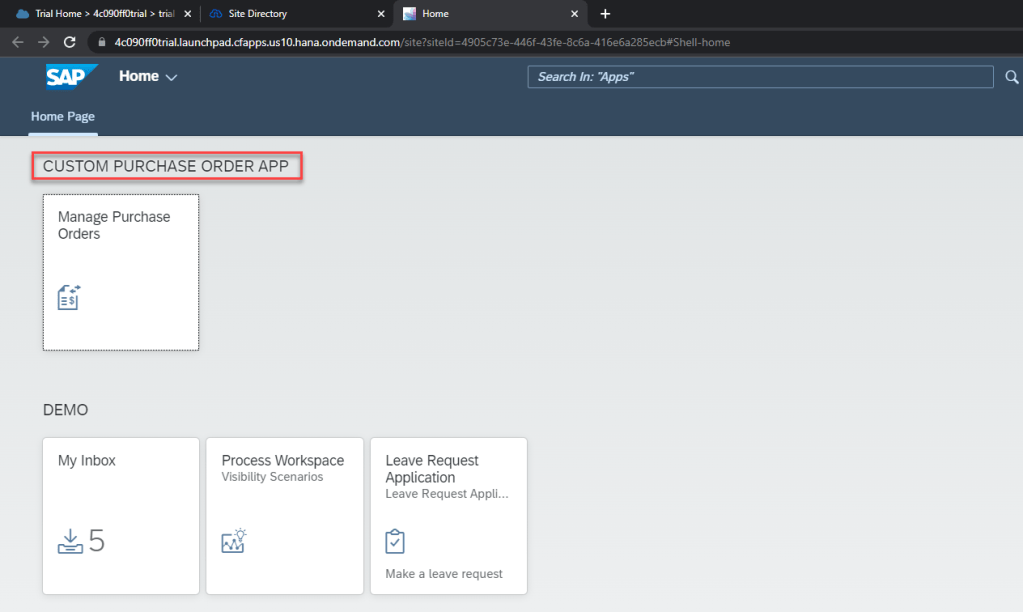

VIEW SITE
OK, FIORI APP and Custom group display on BTP. Next, we will create two more FIORI APP is Create Purchase Order and Change Purchase Order at S/4 HANA backend and expose them.
ADD MORE FIORI APP

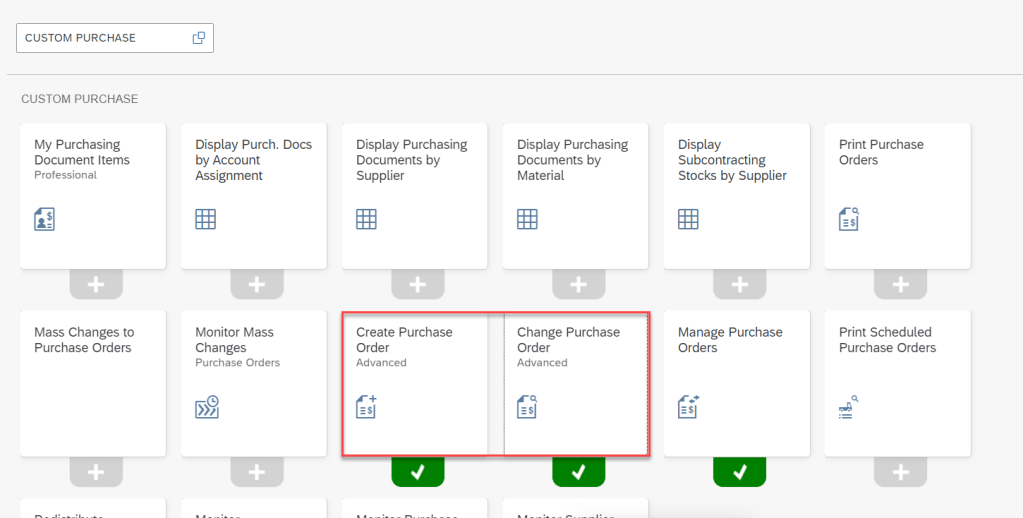

ADD MORE APP INTO GROUP

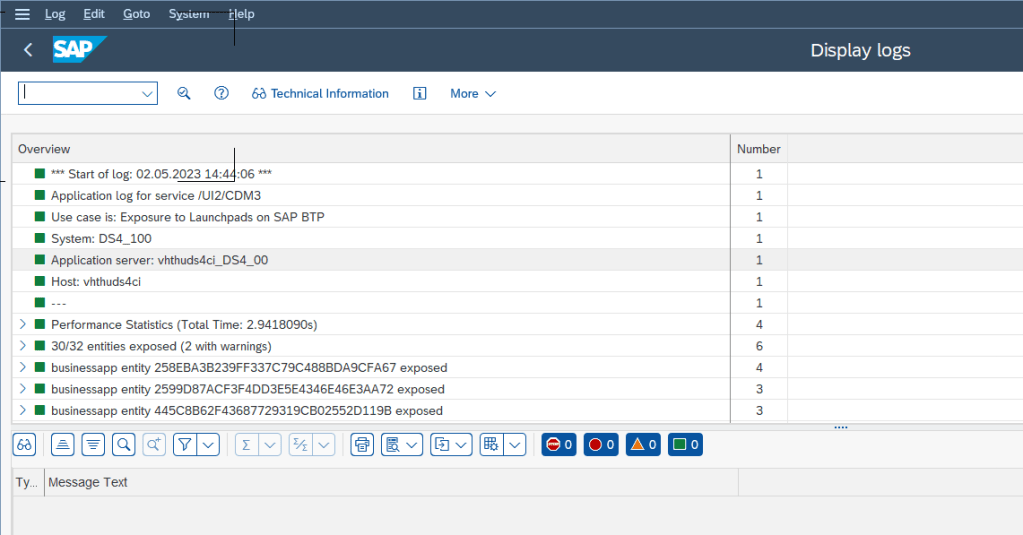

EXPOSE APP FROM S/4 HANA

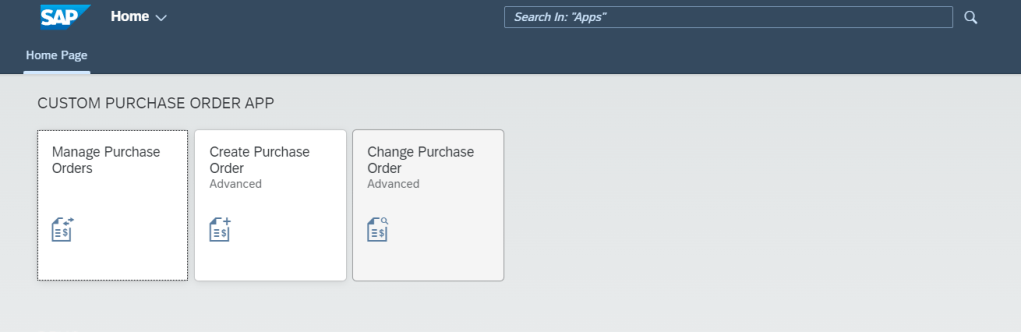

VIEW SITE
SUMMARY
In this article, I shared tutorial How to federated content from S/4 HANA On Premise into SAP BTP Work Zone. Next article, I will shared federated content from S/4 HANA Cloud into SAP Work Zone. Thanks for your reading and any advise kindly leave your comment on this.
Thanks.
Joseph.
SAP Zero to Hero
